Product Detailed Parameters
- Description：FREQUENCY :4280~4320 VDD:5 VC:
- Series：V1512M16
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR)
- Frequency Range：4280 ~ 4320MHz
- Frequency - Center：-
- Voltage - Supply：5V
- Tuning Voltage (VDC)：-
- 2nd Harmonic, Typ (dBc)：-23
- Icc Max：-
- Pushing (MHz/V)：-
- Power (dBm)：-
- Phase Noise Typ (dBc/Hz)：-100
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.122" (3.20mm)
Download product information
Overview

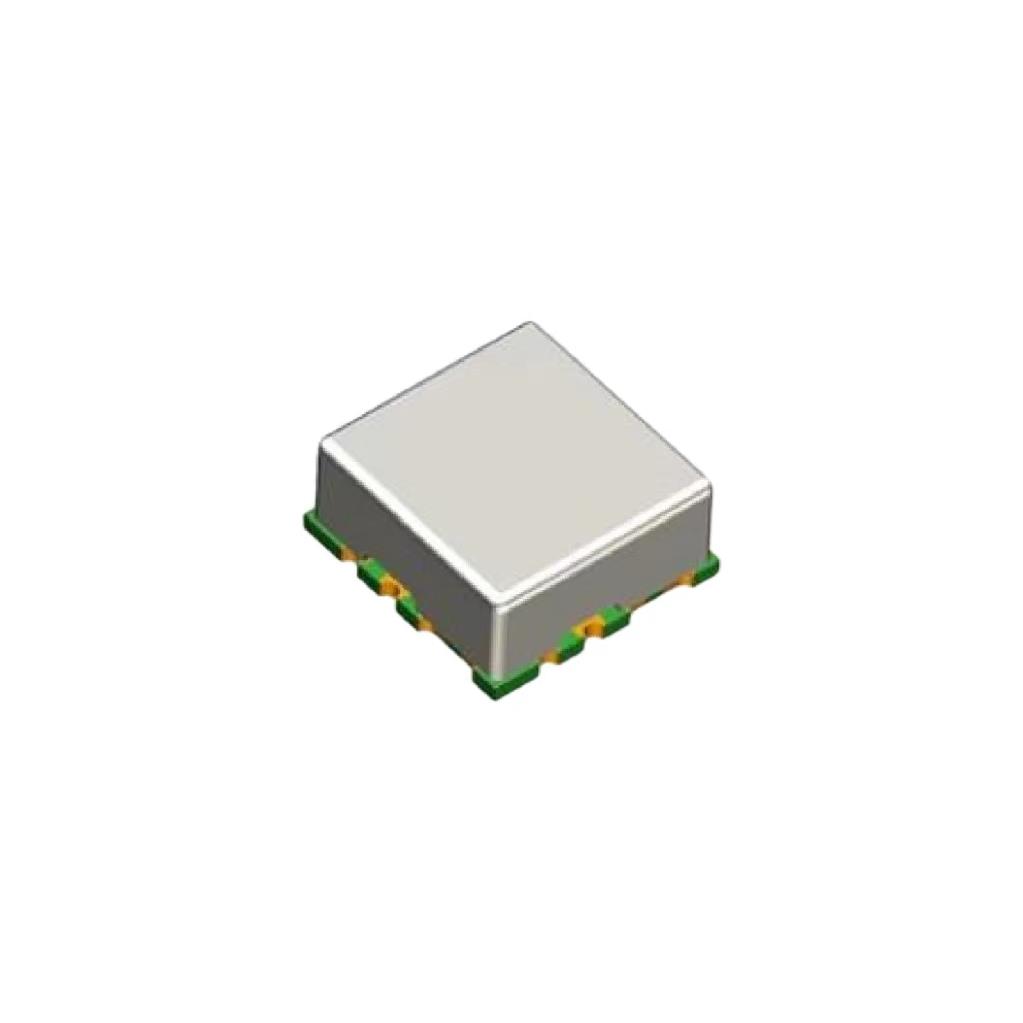

The V1512M16-4280-4320K is a quartz crystal resonator manufactured by Suzhou Hangjing Elec & Tech Co., Ltd. This component belongs to the company's portfolio of frequency control devices designed for signal processing applications. The part number indicates specific electrical and mechanical characteristics typical of their standard crystal lineup, intended for use in electronic circuits requiring precise timing references.
Feature Summary
- Designed as a precision frequency control component for stable signal generation
- Manufactured with rigorous quality testing protocols to ensure ultra-low failure rates
- Supports full-cycle R&D and production standards for consistent performance
Applications
- Smartphone timing circuits
- Tablet device synchronization
- In-vehicle system clocking
- GPS module reference signals
Procurement Notes
Verify the exact datasheet specifications against the official Suzhou Hangjing Elec & Tech documentation before integration. Confirm that the package type and load capacitance requirements match your circuit design. Ensure compatibility with your manufacturing process and reflow profiles. Cross-reference the part number with current product listings to confirm availability and revision status.
Selection Notes
Select this component when a standard quartz crystal resonator is required for consumer electronics or automotive applications. Consider its suitability for space-constrained designs if the physical dimensions align with your PCB layout. Evaluate the manufacturer's supply chain reliability and quality assurance processes for long-term production stability.
Part Context
Suzhou Hangjing Elec & Tech Co., Ltd. (HCI) specializes in quartz frequency control components including crystals, oscillators, and filters. Founded in 2014, the company focuses on R&D and production for global electronics makers. Their products serve key industries such as mobile communications, satellite systems, and automotive electronics, emphasizing precision and reliability.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided source material. Consult official distributor databases or manufacturer cross-reference guides for compatible alternatives.
