V1PM15-M3/H

$0.14

Description：DIODE SCHOTTKY 150V 1A DO219AD
Series：eSMP®
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a9b68238517b Category: Single Diodes Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

V1PM15-M3/H is listed in the Single Diodes range at ChipApex. The manufacturer field lists Vishay General Semiconductor - Diodes Division. Its product description is DIODE SCHOTTKY 150V 1A DO219AD. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for V1PM15-M3/H

Description：DIODE SCHOTTKY 150V 1A DO219AD
Series：eSMP®
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：150 V
Current - Average Rectified (Io)：1A
Voltage - Forward (Vf) (Max) @ If：1.21 V @ 1 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：50 µA @ 150 V
Capacitance @ Vr, F：65pF @ 4V, 1MHz
Mounting Type：Surface Mount
Package / Case：DO-219AD
Supplier Device Package：DO-219AD (MicroSMP)
Operating Temperature - Junction：-40°C ~ 175°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for V1PM15-M3/H

V1PM15-M3/H

Single Diodes Overview

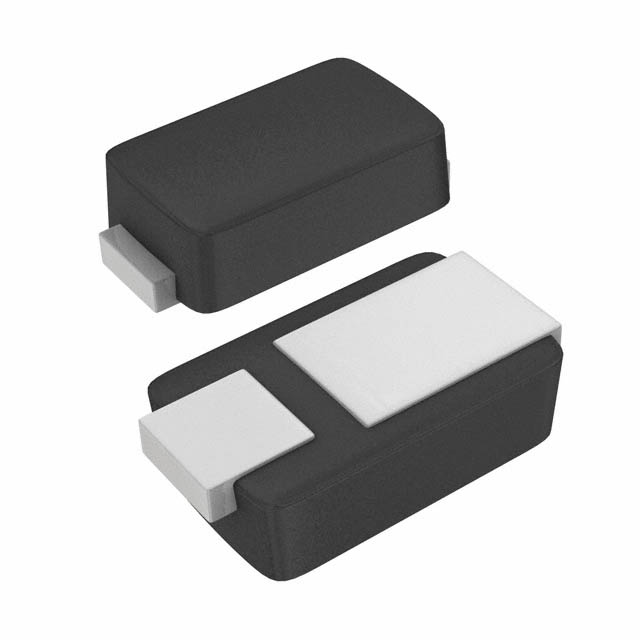

The V1PM15-M3/H is a surface-mount TMBS (Trench MOS Barrier Schottky) rectifier manufactured by Vishay General Semiconductor. It features a MicroSMP (DO-219AD) package with a typical height of 0.65 mm. The device provides a maximum repetitive peak reverse voltage (VRRM) of 150 V and a maximum DC forward current (IF(AV)) of 1.0 A. It supports a peak forward surge current (IFSM) of 25 A and operates within a junction temperature range of -40 to +175 °C.

Single Diodes Feature Summary

Utilizes Trench MOS Schottky technology for low forward voltage drop and high efficiency.
Features a very low profile suitable for automated placement.
Complies with JESD 201 class 2 whisker test requirements.

Single Diodes Applications

Low voltage high frequency inverters
Freewheeling applications
DC/DC converters
Polarity protection

Single Diodes Procurement Notes

Verify the specific ordering code against the datasheet to ensure correct suffixes are selected. Confirm that the base part number matches the required electrical ratings and package type. Check for any regional technical support contacts if further validation is needed before procurement.

Single Diodes Selection Notes

Select this component for designs requiring a single Schottky rectifier in a compact MicroSMP footprint. Ensure the application operates within the specified thermal limits, considering the thermal resistance from junction to ambient. Verify compatibility with automated assembly processes due to the low profile design.

Single Diodes Part Context

This component belongs to the eSMP series of surface-mount rectifiers. It is designed for commercial, industrial, and automotive applications. The device is halogen-free and RoHS-compliant. The M3 suffix indicates compliance with specific environmental standards.

Single Diodes Replacement Considerations

The V1PM15HM3/H is an available variant that includes AEC-Q101 qualification. When substituting, verify that the package dimensions and pinout remain compatible with the existing PCB layout.
