V5PA22-M3/I

Single Diodes Overview

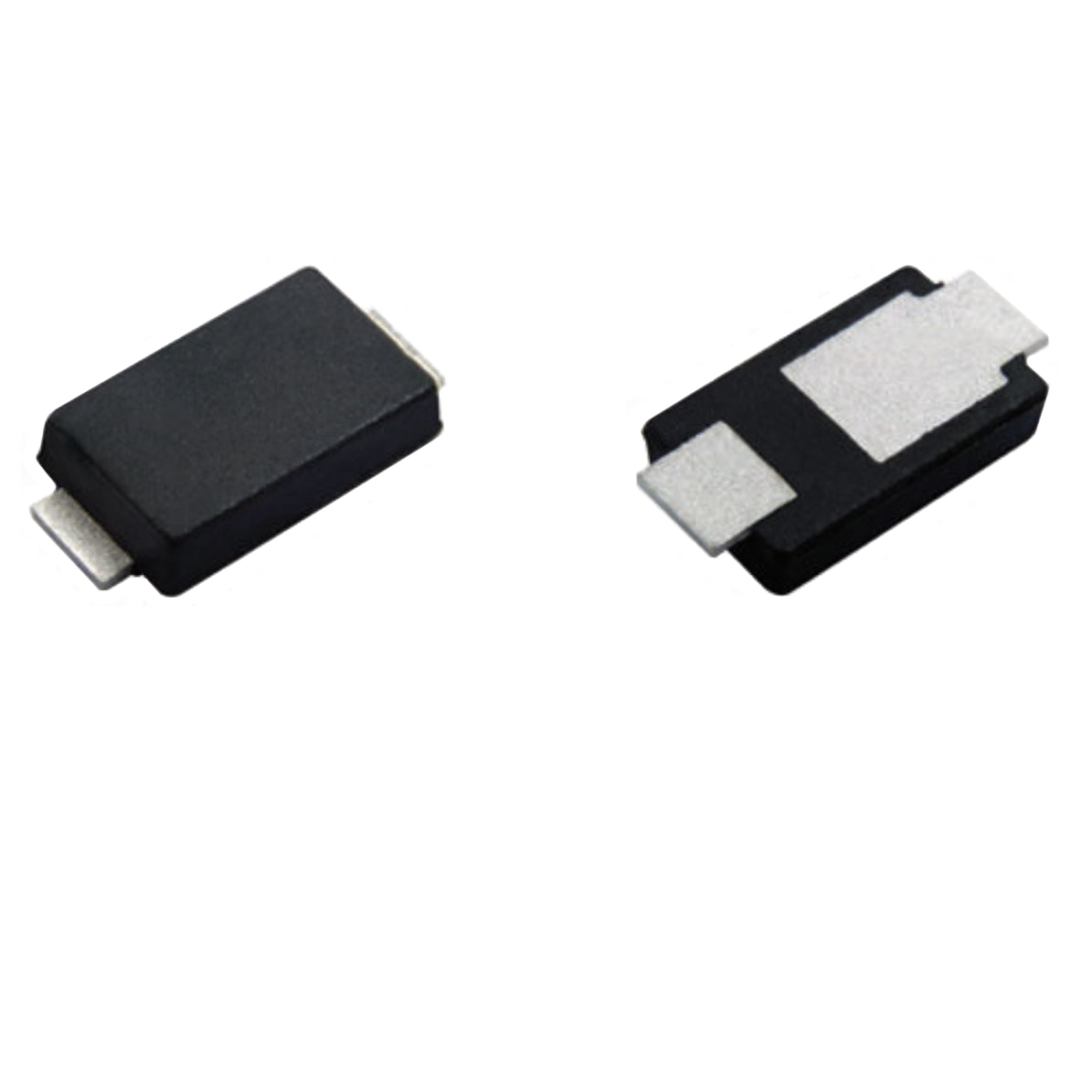

The V5PA22-M3/I is a surface-mount TMBS rectifier from Vishay General Semiconductor, housed in an SMPA (DO-221BC) package. It features a maximum repetitive peak reverse voltage of 200 V and a maximum DC forward current of 5.0 A. The device supports a peak forward surge current of 90 A and operates within a junction temperature range of -40 to +175 °C. At 25 °C, the typical instantaneous forward voltage is 0.76 V at 2.5 A, while the reverse leakage current is typically 0.001 mA at 160 V.

Single Diodes Feature Summary

• Utilizes Trench MOS Schottky technology for low power losses and high efficiency
• Features a very low profile with a typical height of 0.95 mm
• Complies with UL 94 V-0 flammability rating for the molding compound
• Terminals are matte tin plated and solderable per J-STD-002

Single Diodes Applications

• High frequency inverters
• Freewheeling applications
• DC/DC converters
• Polarity protection in commercial and automotive systems

Single Diodes Procurement Notes

Verify the specific ordering code against the official Vishay datasheet to ensure correct suffixes for halogen-free compliance and RoHS standards. Confirm that the SMPA package dimensions align with your PCB footprint requirements. Validate thermal resistance parameters against your specific copper pad area layout to ensure proper heat dissipation during operation.

Single Diodes Selection Notes

Select this component when a low-profile surface-mount solution is required for high-frequency switching applications. Ensure the 200 V reverse voltage rating exceeds the circuit's peak inverse voltage. Verify that the 5.0 A average forward current capability meets the load requirements, considering derating curves for elevated ambient temperatures.

Single Diodes Part Context

This part belongs to the eSMP® series of surface-mount TMBS rectifiers. It is designed as a replacement for through-hole diodes in compact designs. The SMPA package allows for automated assembly processes. The M3 suffix indicates halogen-free and RoHS-compliant manufacturing.

Single Diodes Replacement Considerations

Check for equivalent parts within the same Vishay TMBS family that share the SMPA package and 200 V rating. Verify pinout compatibility and thermal characteristics before substitution.
