V62/04733-01XE

Inverter Gates Overview

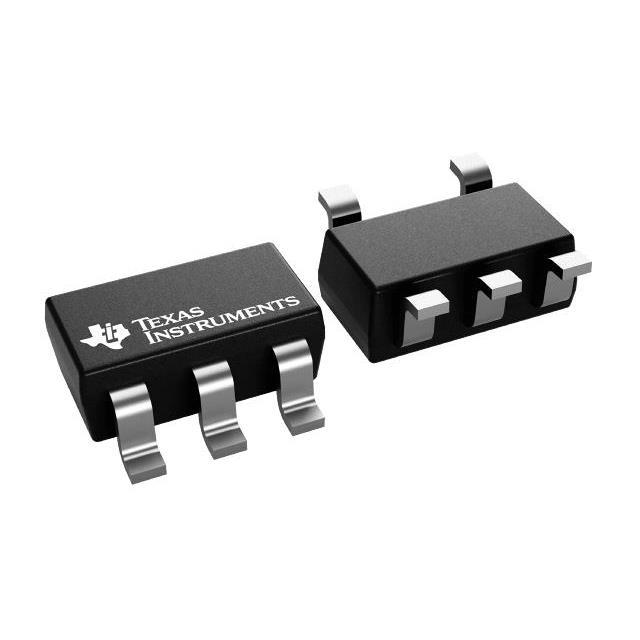

The V62/04733-01XE is a single 2-input positive AND gate from the SN74LVC1G08-EP series, manufactured by Texas Instruments. It operates within a supply voltage range of 1.65 V to 5.5 V and supports inputs up to 5.5 V. The device features a maximum propagation delay of 3.6 ns at 3.3 V and provides output drive currents of ±24 mA at 3.3 V. It is housed in an SC70 (DCK) package with five pins and is rated for an operating temperature range of -40 °C to 85 °C.

Inverter Gates Feature Summary

• Supports partial-power-down mode operation via Ioff circuitry to prevent damaging current backflow.
• Latch-up performance exceeds 100 mA per JESD 78, Class II standards.
• ESD protection ratings exceed 2000 V for the human-body model, 200 V for the machine model, and 1000 V for the charged-device model.

Inverter Gates Applications

• Partial-power-down applications requiring controlled output disabling.
• Digital logic circuits utilizing Boolean AND functions.
• Systems requiring high latch-up immunity and robust ESD protection.

Inverter Gates Procurement Notes

Verify that the specific ordering suffix corresponds to the required temperature grade and package type. Confirm the component status as active production and ensure compliance with RoHS directives. Check for any specific material finish options or moisture sensitivity levels relevant to the assembly process.

Inverter Gates Selection Notes

Select this component when a single 2-input AND gate is needed in a compact SC70 package. It is suitable for designs requiring operation across a wide voltage range from 1.65 V to 5.5 V. Consider its enhanced product-change notification and diminishing manufacturing sources support for long-term availability requirements.

Inverter Gates Part Context

This part belongs to the SN74LVC1G08-EP enhanced product line, which offers controlled baseline manufacturing with one assembly site and one fabrication site. It is distinct from standard catalog versions by providing extended qualification pedigree and specific environmental reliability testing.

Inverter Gates Replacement Considerations

SN74LVC1G08IDCKREP

Inverter Gates FAQ

What is the function of the Ioff feature?

The Ioff circuitry disables the outputs when the device is powered down, preventing damaging current backflow through the device in partial-power-down applications.

Does this device support 5-V operation?

Yes, the device supports 5-V VCC operation and its inputs accept voltages up to 5.5 V.
