V62/06609-01XE

Overview

The V62/06609-01XE is a military-enhanced, 16-bit noninverting bus transceiver with 3-state outputs from the SN74ABT16245A-EP family. It operates within a supply voltage range of 4.5 V to 5.5 V and supports an operating temperature range of -55 °C to +125 °C. The device features high-drive outputs capable of sourcing -24 mA and sinking 48 mA. Propagation delays are specified at a maximum of 3.8 ns for low-to-high transitions and 4.6 ns for high-to-low transitions under standard load conditions.

Feature Summary

• Enhanced product qualification pedigree ensuring reliable operation in extended temperature ranges
• High-impedance state maintained during power-up and power-down sequences
• Distributed VCC and GND pin configuration designed to minimize high-speed switching noise

Applications

• Synchronous two-way communication between data buses
• Military and defense electronic systems requiring enhanced reliability
• Industrial control applications operating in extreme environmental conditions

Procurement Notes

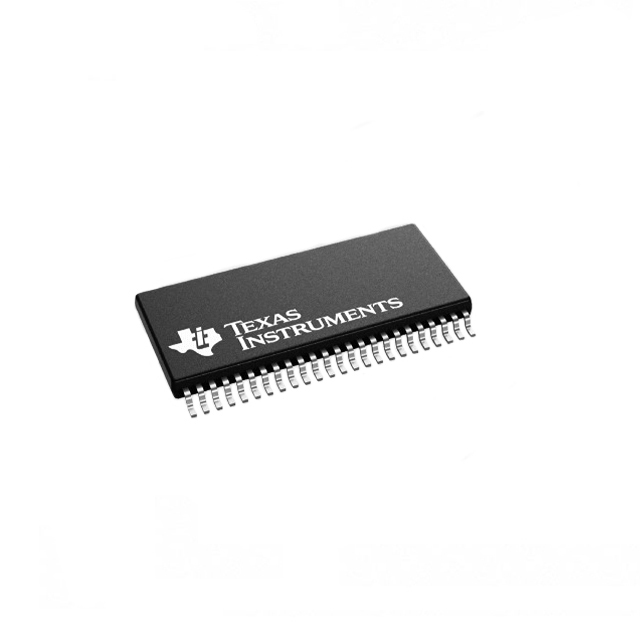

Verify that the component matches the specific V62/06609-01XE ordering designation rather than the commercial catalog equivalent. Confirm the package type is SSOP (DL) with 48 pins. Ensure the supplier provides traceability documentation consistent with Texas Instruments' enhanced product standards for military-grade components.

Selection Notes

Select this component when a 16-bit widebus transceiver is required for high-reliability environments. The ABT logic series offers a balance of speed and drive capability suitable for complex digital interfaces. Consider the specific propagation delay requirements and the necessity for controlled baseline manufacturing sources before finalizing the design.

Part Context

This part belongs to the SN74ABT16245A-EP family, which utilizes EPIC-IIB BiCMOS technology to reduce power dissipation. It is a member of the Widebus family, allowing it to function as either one 16-bit or two 8-bit transceivers. The device is designed to meet stringent military specifications while maintaining compatibility with standard TTL input levels.

Replacement Considerations

The commercial catalog version SN74ABT16245A serves as the base model but lacks the enhanced military qualification. The military qualified version SN54ABT16245A is also available. Verify that any substitute maintains the same SSOP-48 package and meets the specific -55 °C to +125 °C operating temperature range.
