Product Detailed Parameters
- Description：IC VREF SERIES SOT23-6
- Series：-
- Mfr：Texas Instruments
- Package：Tape & Reel (TR)
- Output Type：Fixed
- Voltage - Output (Min/Fixed)：2.5V
- Voltage - Output (Max)：-
- Current - Output：10 mA
- Operating Temperature：-55°C ~ 125°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：SOT-23-6
- Supplier Device Package：SOT-23-6
- Grade：-
- Qualification：-
Download product information
Overview

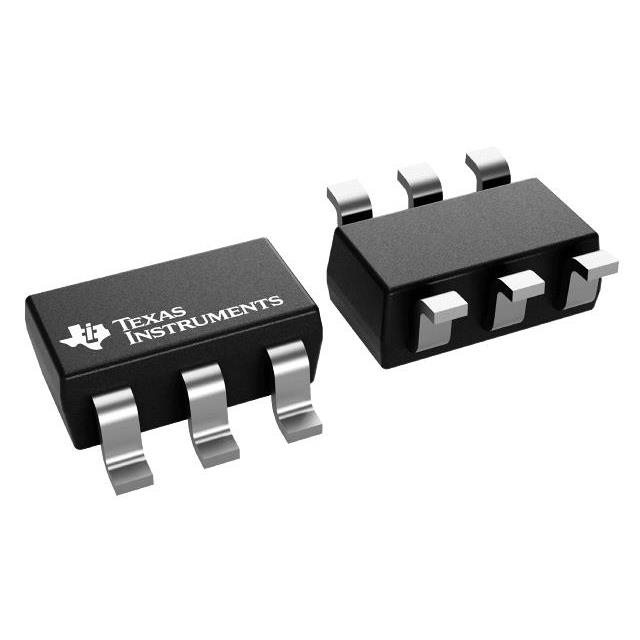

The V62/18622-01XE is a Texas Instruments enhanced product series voltage reference IC. It provides a fixed output voltage of 2.5 V with an initial accuracy of ±0.05%. The device supports a maximum output current of 10 mA and operates within an extended temperature range from -55°C to +125°C. It is housed in a compact SOT-23 (DBV) package with six pins, designed for low-drift and low-power applications.
Feature Summary
- Fixed 2.5 V output voltage
- Low-drift performance characteristics
- Extended industrial temperature range capability
Applications
- Precision measurement systems
- Data acquisition circuits
- Sensor signal conditioning
Procurement Notes
Verify the specific revision suffix and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Ensure the ordering part number matches the required package variant and quality level. Confirm that the supply chain source is authorized to guarantee component authenticity and traceability for this enhanced product line.
Selection Notes
Select this component when a stable 2.5 V reference is required in space-constrained designs utilizing SOT-23 packages. Consider its low-drift specifications for applications demanding high precision over varying thermal conditions. Evaluate the 10 mA output current limit against the load requirements to ensure adequate drive capability without exceeding device limits.
Part Context
This part belongs to Texas Instruments' enhanced product portfolio, which typically offers extended reliability testing and longer availability windows compared to standard commercial grades. It is based on the REF3425 family, providing a reliable voltage reference solution for robust electronic systems requiring consistent performance under harsh environmental conditions.
Replacement Considerations
Direct substitutes include other 2.5 V low-drift references in SOT-23-6 packages such as the REF3425. Verify pin compatibility and electrical parameter tolerances before substitution.
