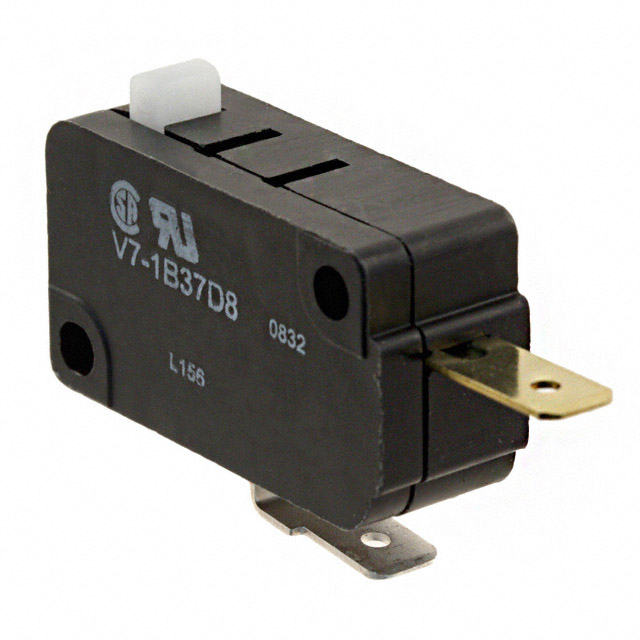

V7-1B37D8

V7-1B37D8 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Honeywell Sensing and Productivity Solutions. Its product description is SWITCH SNAP ACT SPST-NC 11A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for V7-1B37D8

• Description：SWITCH SNAP ACT SPST-NC 11A 125V
• Series：V7
• Mfr：Honeywell Sensing and Productivity Solutions
• Package：Bulk
• Circuit：SPST-NC
• Switch Function：On-Mom
• Current Rating (Amps)：11A (AC), 500mA (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：-
• Features：-
• Operating Force：150gf
• Release Force：25gf
• Operating Position：0.579" (14.7mm)
• Pretravel：0.047" (1.2mm)
• Differential Travel：0.010" (0.25mm)
• Overtravel：0.050" (1.27mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：125 V
