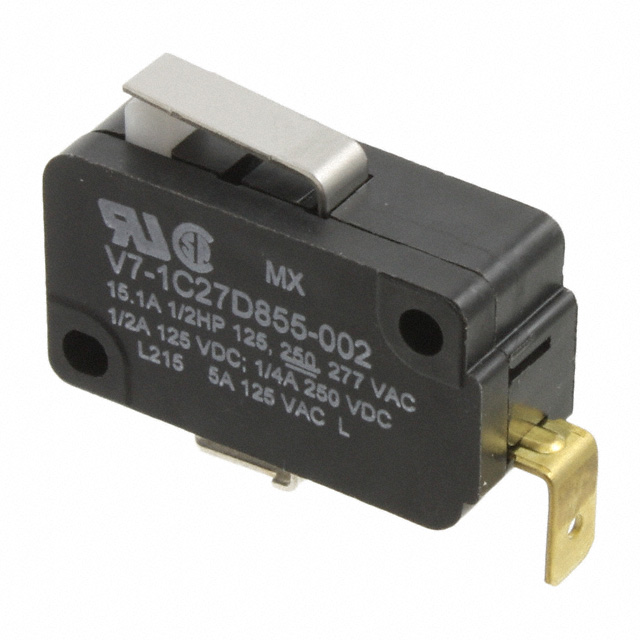

V7-1C27D855-002

V7-1C27D855-002 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Honeywell Sensing and Productivity Solutions. Its product description is SWITCH SNAP ACT SPST-NO 15A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for V7-1C27D855-002

• Description：SWITCH SNAP ACT SPST-NO 15A 125V
• Series：V7
• Mfr：Honeywell Sensing and Productivity Solutions
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：15A (AC), 500mA (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：-
• Features：-
• Operating Force：160gf
• Release Force：15gf
• Operating Position：0.600" (15.2mm)
• Pretravel：0.060" (1.5mm)
• Differential Travel：0.015" (0.38mm)
• Overtravel：0.035" (0.9mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for V7-1C27D855-002
