VAOL-10GWY4

LED Indication - Discrete Overview

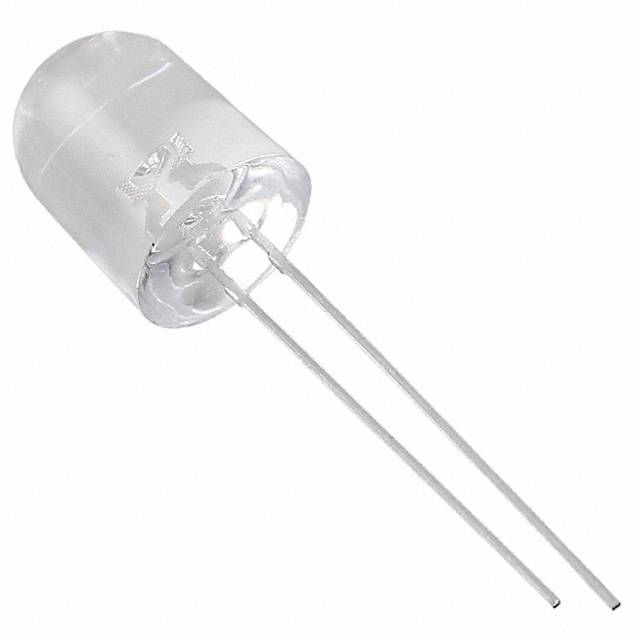

The VAOL-10GWY4 is a white light-emitting diode from VCC, utilizing InGaN/sapphire technology. It features a T-3 (10mm) through-hole package with a water-clear dome lens and a 30-degree viewing angle. Key electrical parameters include a forward current of 20 mA, a forward voltage of 3.5 V, and a power rating of 150 mW. The component delivers an intensity of 8000 mcd and operates within a temperature range of -40°C to +80°C.

LED Indication - Discrete Feature Summary

• High-intensity light output based on InGaN/sapphire material technology
• Water-transparent lens for clear illumination
• IC-compatible design suitable for low power consumption applications

LED Indication - Discrete Applications

• Commercial outdoor sign boards
• Front panel indicators
• General indication circuits

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version for moisture sensitivity classification and handling requirements before assembly. Confirm that the T-3 package dimensions align with the target PCB footprint. Ensure thermal management strategies account for the specified maximum operating temperature of 80°C during continuous operation.

LED Indication - Discrete Selection Notes

Select this component when high brightness in a standard 10mm through-hole form factor is required. The 3.5V forward voltage drop necessitates appropriate current-limiting resistors or drivers. Consider the 30-degree beam angle for directional lighting needs rather than wide-area diffusion.

LED Indication - Discrete Part Context

This part belongs to the VAOL series of super-bright LEDs manufactured by Visual Communications Company. The series utilizes advanced semiconductor materials to achieve high luminous intensity in traditional through-hole packages, bridging the gap between legacy indicator lamps and modern high-performance lighting components.

LED Indication - Discrete Replacement Considerations

Cross-reference with other T-3 white LEDs offering similar 8000 mcd intensity and 3.5V forward voltage. Verify pin compatibility and spectral distribution matches if substituting in existing designs.
