VAOL-5701SBY4

LED Indication - Discrete Overview

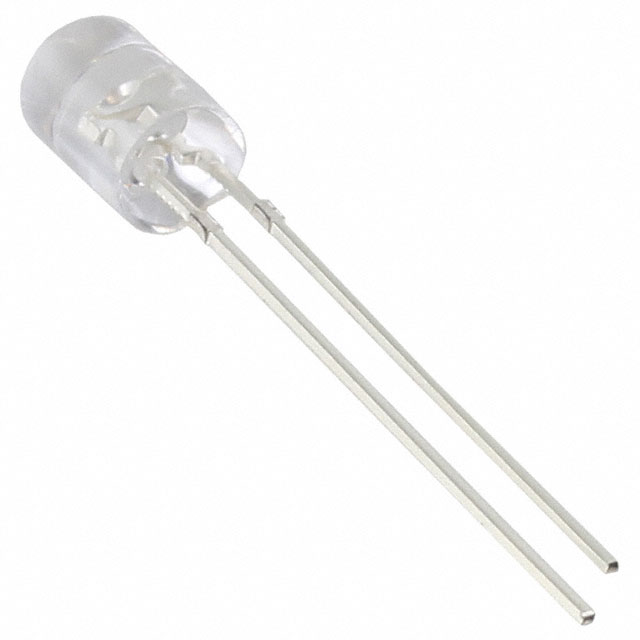

The VAOL-5701SBY4 is a single-color blue LED from Visual Communications Company. It features a T-1 3/4 (5mm) through-hole package with a water clear lens. The component emits light at a wavelength of 465nm to 470nm with an intensity of 1000mcd. Electrical characteristics include a forward voltage of 3.5V and a forward current of 20mA. The power rating is 100mW, and the viewing angle is 100 degrees.

LED Indication - Discrete Feature Summary

• High-intensity light output suitable for visible indication
• Water transparent lens for clarity
• Through-hole mounting style for standard PCB integration

LED Indication - Discrete Applications

• Panel indicators
• Power status displays
• Equipment signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with Visual Communications Company or authorized distributors before procurement. Confirm that the 5mm T-1 3/4 package dimensions align with your PCB footprint requirements. Ensure thermal management considerations are addressed for continuous operation at the specified forward current.

LED Indication - Discrete Selection Notes

Select this component when a high-brightness blue indicator is required in a standard 5mm through-hole form factor. Consider the 3.5V forward voltage drop for circuit design. Compare against other colors in the VAOL-5701 series if different visual signaling is needed. Verify compatibility with existing assembly processes for through-hole LEDs.

LED Indication - Discrete Part Context

This part belongs to the VAOL-5701 series of super-bright through-hole LEDs manufactured by Visual Communications Company. The series offers various color options including green, white, and blue, all sharing the same T-1 3/4 mechanical outline. These components are designed for general-purpose indication applications requiring reliable performance and consistent optical output.

LED Indication - Discrete Replacement Considerations

Direct substitutes within the same series include VAOL-5701DE4 (Green) and VAOL-5701WY4 (White). Cross-brand replacements must match the 5mm diameter, 6.8mm height, and electrical parameters. Verify pin configuration and lens transparency specifications to ensure functional equivalence.
