VAOL-5LCE2

LED Indication - Discrete Overview

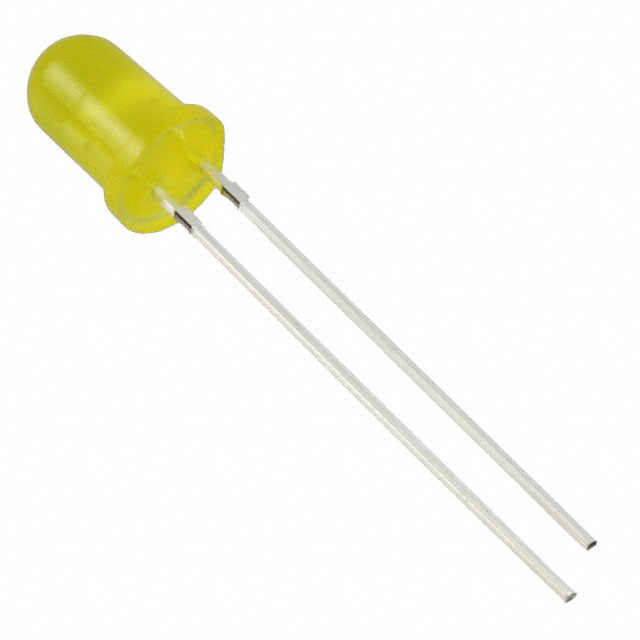

The VAOL-5LCE2 is a single-color through-hole LED indicator manufactured by Visual Communications Company (VCC). It features a yellow lens and emits light at a dominant wavelength of 590 nm. The component operates within a temperature range of -20°C to +80°C and has a forward voltage of 2 V. It is RoHS3 compliant and classified as moisture sensitive.

LED Indication - Discrete Feature Summary

• Through-hole mounting configuration for standard PCB assembly
• Yellow lens with 590 nm dominant wavelength emission
• RoHS3 compliant construction

LED Indication - Discrete Applications

• Commercial outdoor equipment indication
• General status signaling in electronic devices
• Panel mount indicator applications

LED Indication - Discrete Procurement Notes

Verify current availability as the VAOL-5LCE2 is listed as obsolete and no longer manufactured by the original producer. Sourcing may require checking distributor surplus stock or authorized secondary market channels. Confirm RoHS3 compliance documentation if required for specific regulatory standards. Ensure handling precautions are observed due to moisture sensitivity classification during storage and reflow processes.

LED Indication - Discrete Selection Notes

Select this component only if through-hole technology is required for the design. Consider the 5mm form factor and yellow color output for visibility needs. Evaluate thermal management capabilities given the 80°C maximum operating limit. Verify that the 2V forward voltage aligns with the driving circuit constraints. Check for suitable replacement parts from other manufacturers if new production volume is needed.

LED Indication - Discrete Part Context

This part belongs to the VAOL series of standard and super-bright LED lamps from VCC. These components are designed for commercial and industrial indication purposes. The series typically offers various colors and lens styles. The VAOL-5LCE2 specifically represents the yellow variant in this lineup, utilizing traditional leaded packaging for robust mechanical connection.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Due to the obsolete status, alternative sourcing should focus on compatible generic 5mm through-hole yellow LEDs with similar electrical characteristics.
