VAOL-5LSBY2

LED Indication - Discrete Overview

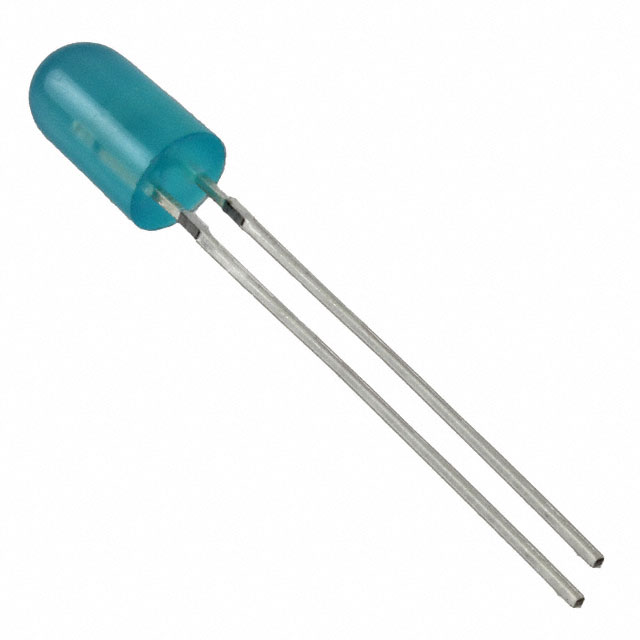

The VAOL-5LSBY2 is a single-color blue LED from Visual Communications Company, designed for through-hole mounting in T-1 3/4 (5mm) packages. It emits light at a wavelength of 470nm with a typical forward voltage of 3.5V and a forward current rating of 20mA. The component features a diffused lens transparency and a domed top shape, delivering a light intensity of 1500mcd. With a power rating of 100mW, it provides reliable illumination suitable for indicator applications requiring precise color matching and secure panel fit.

LED Indication - Discrete Feature Summary

• Through-hole design compatible with VCC mounting hardware for secure panel fit
• Diffused lens transparency ensures wide viewing angles up to 180 degrees
• Color matched with VCC lenses for optimal brightness and visual consistency

LED Indication - Discrete Applications

• Panel indicators requiring secure mechanical alignment
• Standoff or PCB mounted products where lens access is limited
• Applications utilizing VCC Fresnel technology lenses

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number VAOL-5LSBY2 against official Visual Communications Company documentation to confirm specifications. Ensure compatibility with existing VCC mounting hardware and lens sockets for proper mechanical alignment. Cross-reference datasheet parameters such as forward voltage and current ratings before integration. Confirm RoHS compliance status through authorized distributor channels or direct manufacturer resources.

LED Indication - Discrete Selection Notes

Select this component when a 5mm through-hole blue LED with diffused output is required. Consider its 1500mcd intensity and 470nm wavelength for visibility needs. Evaluate the 3.5V forward voltage drop for circuit design. Ensure the T-1 3/4 package size fits the designated panel or PCB layout constraints.

LED Indication - Discrete Part Context

This LED belongs to the VCC optoelectronics line, engineered around specific mounting hardware parameters. The 5mm series complements VCC lens and cable sockets by mechanically aligning with retaining mechanisms. These components are designed to provide secure panel mount fits and are color-matched with corresponding VCC lenses.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
