VAOL-S1513RGB

LED Indication - Discrete Overview

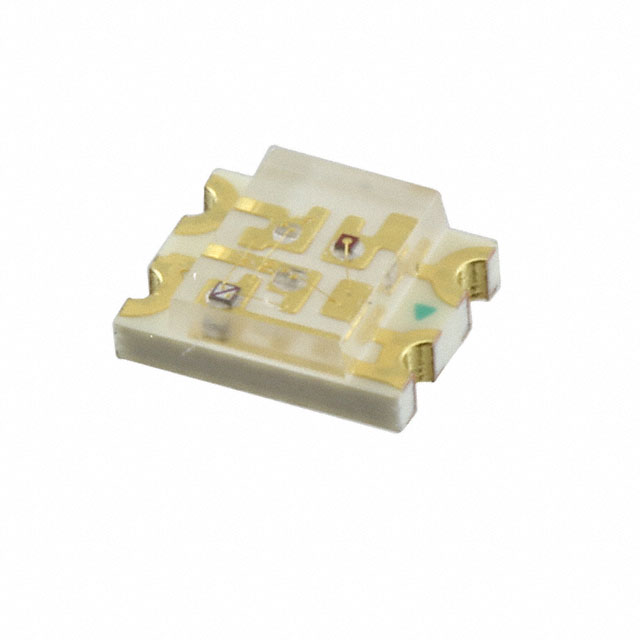

The VAOL-S1513RGB is a surface-mount RGB LED indicator manufactured by Visual Communications Company. It features a common anode configuration with red, green, and blue emitters housed in a clear lens within a 4-SMD package measuring 3.20mm x 2.60mm x 1.10mm. The device operates at a typical forward voltage of 2V for red and 3.3V for green and blue channels, tested at 20mA per color. Peak wavelengths are 632nm (red), 518nm (green), and 468nm (blue). Luminous intensity reaches 140mcd, 180mcd, and 70mcd respectively, with a 120-degree viewing angle.

LED Indication - Discrete Feature Summary

• Integrates red, green, and blue light-emitting diodes into a single compact surface-mount component
• Utilizes a clear rectangular lens with a flat top to ensure consistent optical transmission
• Supports multi-color mixing capabilities through independent channel control via common anode structure

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Multi-color visual signaling in consumer devices
• Backlighting applications requiring color variation

LED Indication - Discrete Procurement Notes

Verify the specific suffix variant required for your assembly process, as the manufacturer offers tape-and-reel, cut-tape, and Digi-Reel packaging options. Confirm that the selected quantity aligns with the standard manufacturing pack size to optimize material handling. Ensure compatibility with reflow soldering profiles specified in the official datasheet to maintain junction integrity during thermal processing.

LED Indication - Discrete Selection Notes

Choose this component when space constraints require a combined RGB solution in a small footprint. The common anode design simplifies driver circuitry compared to common cathode alternatives. Consider the specific luminous intensity requirements for each color channel, as the green emitter provides higher brightness than the red or blue variants. Verify that the operating voltage levels match the available logic or drive signals in the target system.

LED Indication - Discrete Part Context

This part belongs to the VAOL-S1513 series from Visual Communications Company, which focuses on high-brightness surface-mount indicators. The series is designed for modern electronics manufacturing, offering lead-free compliance and moisture sensitivity level 2 classification. It serves as a direct replacement for older through-hole RGB assemblies where board real estate is limited.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Evaluate pin-compatible RGB SMD LEDs with similar dimensions and electrical characteristics if direct substitution is necessary.
