VAOL-S6SB4

LED Indication - Discrete Overview

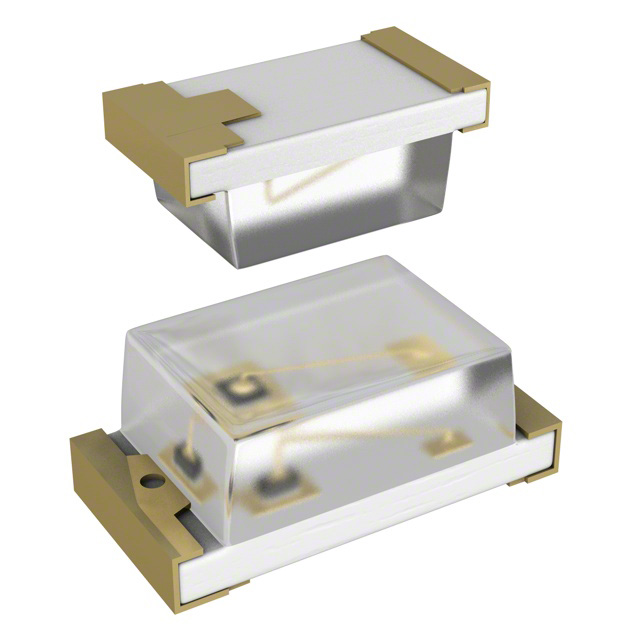

The VAOL-S6SB4 is a blue surface-mount LED from Visual Communications Company, designed for compact electronic applications. It features a 0603 package with dimensions of 1.2mm x 0.8mm and a height of 0.6mm. The device emits light at a wavelength of 475nm with a typical intensity of 28.5mcd. It operates with a forward voltage of approximately 2.5V to 2.75V and supports a maximum forward current of 25mA. The component offers a wide viewing angle of 120 degrees and has a power rating of 110mW.

LED Indication - Discrete Feature Summary

• Surface-mount design compatible with automatic placement equipment
• Wide 120-degree viewing angle for broad visibility
• Compatible with infrared and vapor phase reflow solder processes

LED Indication - Discrete Applications

• Indicator lights in consumer electronics
• Status indicators on printed circuit boards
• Compact device front panels

LED Indication - Discrete Procurement Notes

Verify the specific ordering code and manufacturer lead time, which may vary between suppliers. Confirm that the component meets conflict mineral-free requirements if applicable to your supply chain standards. Ensure compatibility with your assembly process regarding reflow soldering profiles before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when space constraints require a 0603 footprint. Consider the 2.5V forward voltage drop for circuit design. The 120-degree viewing angle makes it suitable for applications requiring wide visibility. Verify that the 25mA maximum current rating aligns with your system's power budget and thermal management capabilities.

LED Indication - Discrete Part Context

This part belongs to the VAOL series of surface-mount LEDs from Visual Communications Company. The series includes various colors and package sizes. The VAOL-S6SB4 specifically targets applications needing a small form factor with blue illumination. It is an active lifecycle product available through authorized distributors.

LED Indication - Discrete Replacement Considerations

Check datasheets for direct substitutes with identical 0603 dimensions and 475nm wavelength. Ensure replacement parts match the 2.5V forward voltage and 25mA current limits. Verify pinout compatibility and reflow soldering profile alignment to maintain assembly integrity.
