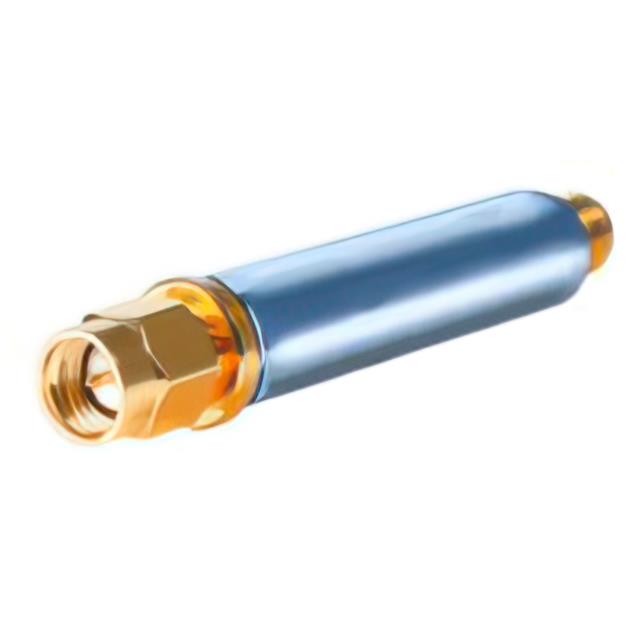

VBFZ-3590-S+

$51.54

Description：RF FILT BAND PASS 3.59GHZ INLINE
Series：VBFZ
Mfr：Mini-Circuits
Package：Box

SKU:0601300a64c5 Category: RF Filters Brand: Mini-Circuits

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILT BAND PASS 3.59GHZ INLINE
Series：VBFZ
Mfr：Mini-Circuits
Package：Box
Frequency：3.59GHz Center
Bandwidth：1.3GHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：2.4dB
Mounting Type：Free Hanging (In-Line)
Package / Case：Inline, SMA Connection, F and M
Size / Dimension：0.410" Dia x 0.410" L (10.41mm x 10.41mm)
Height (Max)：-

Download product information

VBFZ-3590-S+

Overview

The VBFZ-3590-S+ is a 50Ω bandpass filter with a passband of 3000 to 4300 MHz. It features ultra-steep rejection skirts and excellent temperature stability. The device provides 25dB rejection up to 14GHz and supports power handling up to 7W. Construction utilizes rugged unibody design with LTCC technology for thermal consistency.

Feature Summary

Ultra-steep rejection skirts for precise signal isolation
Excellent temperature stability using LTCC construction
High power handling capability up to 7W

Applications

EMI/RFI suppression
Power line filtering
Wireless communication systems

Procurement Notes

Verify the specific datasheet version and environmental rating (ENV28) against project requirements. Confirm SMA connector compatibility and inline mounting style. Ensure the 7W power handling meets system peak power levels. Check RoHS compliance status if required by manufacturing standards.

Selection Notes

Select this component when steep skirt performance and high power handling are critical. The 3000-4300 MHz range suits specific wireless bands. Consider the unibody construction for durability in harsh environments. Evaluate the 25dB rejection specification against adjacent channel interference needs.

Part Context

This part belongs to Mini-Circuits' RF filter portfolio, designed for signal conditioning in microwave applications. It addresses EMI/RFI suppression needs in dense electronic environments. The product line emphasizes robust construction and stable performance across varying temperatures.
