VBFZ-925-S+

Overview

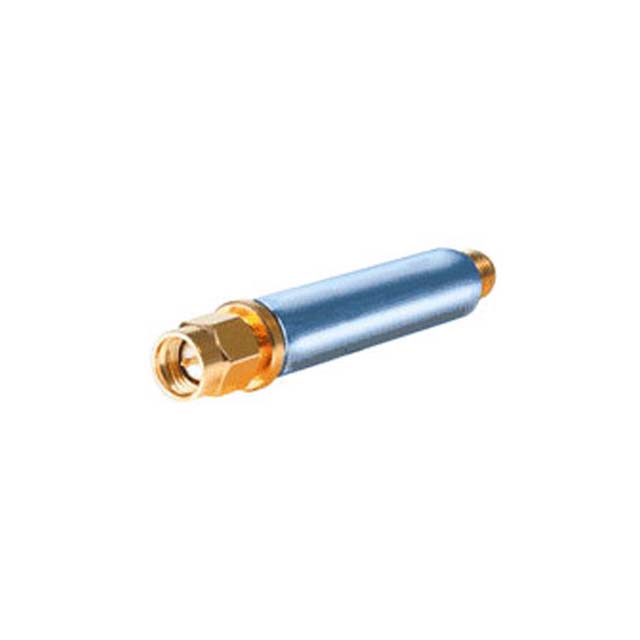

The VBFZ-925-S+ is a coaxial bandpass filter from Mini-Circuits designed for RF signal conditioning. It operates within a frequency range of 800 to 1050 MHz, centered at 925 MHz with a bandwidth of 250 MHz. The component features SMA connectors and maintains a 50 Ohm impedance. It is housed in the FF1145 case style and meets the ENV28 environmental rating. The unit supports storage temperatures between -55°C and 100°C.

Feature Summary

• Provides precise bandpass filtering within the 800 to 1050 MHz spectrum
• Constructed with SMA connectors for reliable in-line integration
• Engineered for high-reliability performance in demanding environments

Applications

• Wireless infrastructure systems
• Aerospace and defense applications
• Test and measurement equipment

Procurement Notes

Verify the specific part number suffix against official Mini-Circuits documentation to ensure correct connector type and electrical specifications. Confirm that the required frequency range and impedance match the system design requirements before procurement. Cross-reference the datasheet for any recent updates to the environmental ratings or mechanical dimensions.

Selection Notes

Select this component when a fixed center frequency of 925 MHz is required with a 250 MHz bandwidth. Ensure the application environment falls within the specified temperature range. Verify compatibility with existing SMA interfaces and 50 Ohm system impedance. Consider the FF1145 package size for spatial constraints.

Part Context

This model belongs to the Mini-Circuits VBFZ series of connectorized bandpass filters. These components are engineered for high reliability in RF and microwave applications. The series offers various center frequencies to suit different wireless and industrial needs while maintaining consistent performance standards across the product line.

Replacement Considerations

Consult Mini-Circuits official substitution guides for compatible alternatives. Verify that any substitute matches the 800-1050 MHz frequency range and SMA interface. Ensure equivalent environmental ratings and impedance characteristics are maintained for system integrity.
