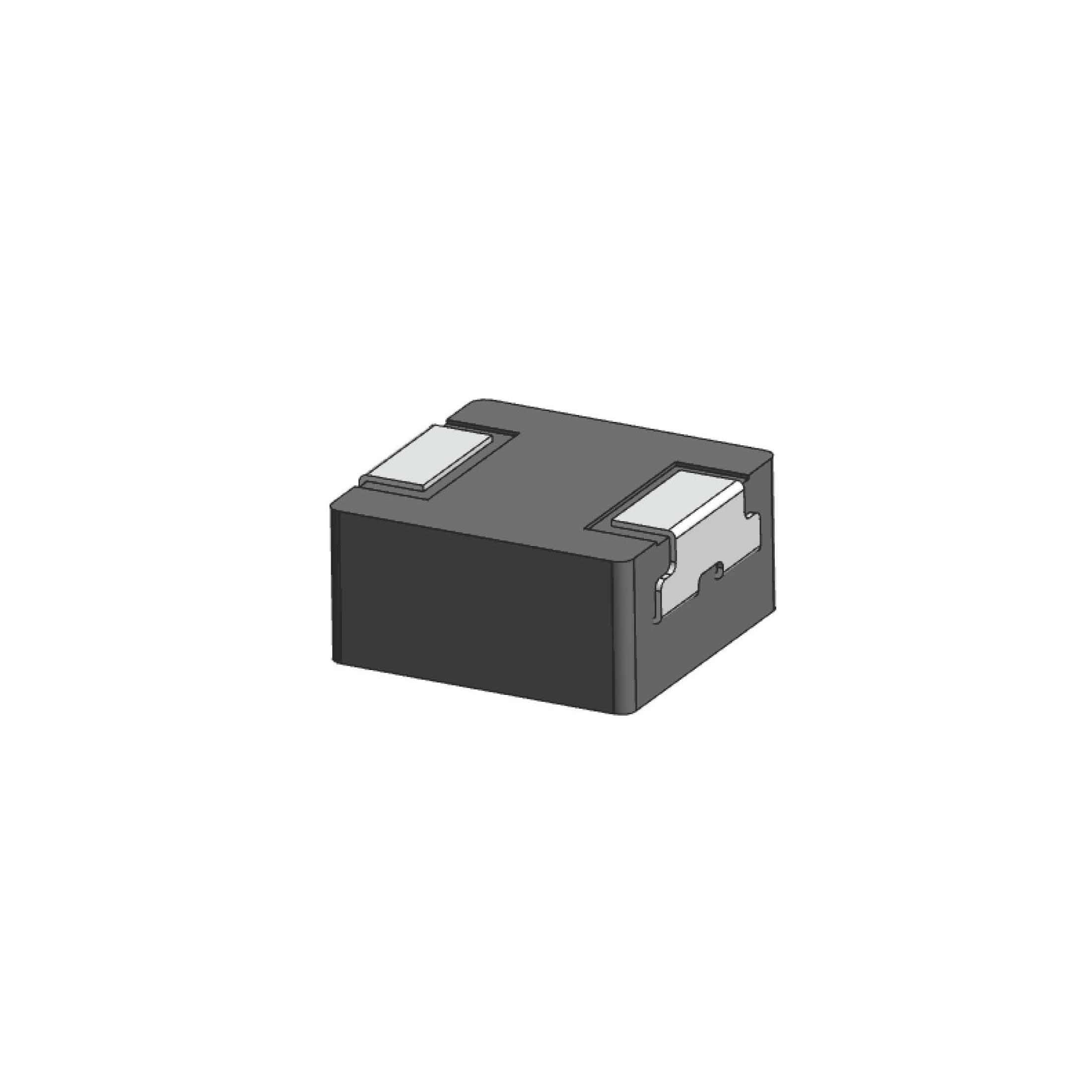

VCHA054T-6R8MS6

$1.49

Description：IND SMD 6.8UH AUTO GRADE CHOKE
Series：VCHA054T
Mfr：Delta Electronics/Cyntec
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8355b8e647ce Category: Fixed Inductors Brand: Delta Electronics/Cyntec

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VCHA054T-6R8MS6 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Delta Electronics/Cyntec. Its product description is IND SMD 6.8UH AUTO GRADE CHOKE. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for VCHA054T-6R8MS6

Description：IND SMD 6.8UH AUTO GRADE CHOKE
Series：VCHA054T
Mfr：Delta Electronics/Cyntec
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Molded
Material - Core：Metal
Inductance：6.8 µH
Tolerance：±20%
Current Rating (Amps)：3.9 A
Current - Saturation (Isat)：5.4A
Shielding：Shielded
DC Resistance (DCR)：57.6mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 165°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.213" L x 0.205" W (5.40mm x 5.20mm)
Height - Seated (Max)：0.157" (4.00mm)
Features：-

Fixed Inductors datasheet and documents for VCHA054T-6R8MS6

VCHA054T-6R8MS6

Fixed Inductors Overview

The VCHA054T-6R8MS6 is a shielded molded power inductor from the Delta Electronics/Cyntec automotive series. It features a metal core and surface mount construction with dimensions of 5.4mm x 5.4mm x 3.9mm. The component provides an inductance of 6.8 µH at a test frequency of 100 kHz with a tolerance of ±20%. It supports a saturation current (Isat) of 6.3 A and a heat rating current (Idc) of 3.9 A. The maximum DC resistance is 57.6 mΩ, and it operates within a temperature range of -55°C to +165°C.

Fixed Inductors Feature Summary

AEC-Q200 qualified for automotive reliability standards
Shielded design minimizes electromagnetic interference
High thermal stability suitable for demanding environments

Fixed Inductors Applications

Automotive power supply circuits
On-board charging systems
DC-DC converter output filtering

Fixed Inductors Procurement Notes

Verify the specific suffix MS6 against official datasheets to confirm package and tolerance specifications. Ensure the procurement channel sources directly from authorized distributors or the manufacturer to guarantee authenticity and traceability for automotive-grade components.

Fixed Inductors Selection Notes

Select this component when space constraints require a compact 5.4mm footprint combined with high current handling capabilities. The wide operating temperature range makes it suitable for under-hood applications where thermal management is critical for long-term performance.

Fixed Inductors Part Context

This part belongs to the VCHA series of automotive power chokes designed by Cyntec. The series emphasizes high power density and reliability for electric vehicle and advanced driver-assistance systems. The VCHA054T variant specifically targets applications requiring robust shielding and high saturation currents in small form factors.
