VCM1308-101

$3.19

Description：CMC 120UH 3.5A 2LN THROUGH HOLE
Series：-
Mfr：Allied Components International
Package：Tray

SKU:9f63f03613f8 Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 120UH 3.5A 2LN THROUGH HOLE
Series：-
Mfr：Allied Components International
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：3.5A
DC Resistance (DCR) (Max)：7.5mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-20°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.512" Dia (13.00mm)
Height (Max)：0.512" (13.00mm)
Package / Case：Vertical, No Base, 4 PC Pin
Inductance @ Frequency：120 µH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

VCM1308-101

Overview

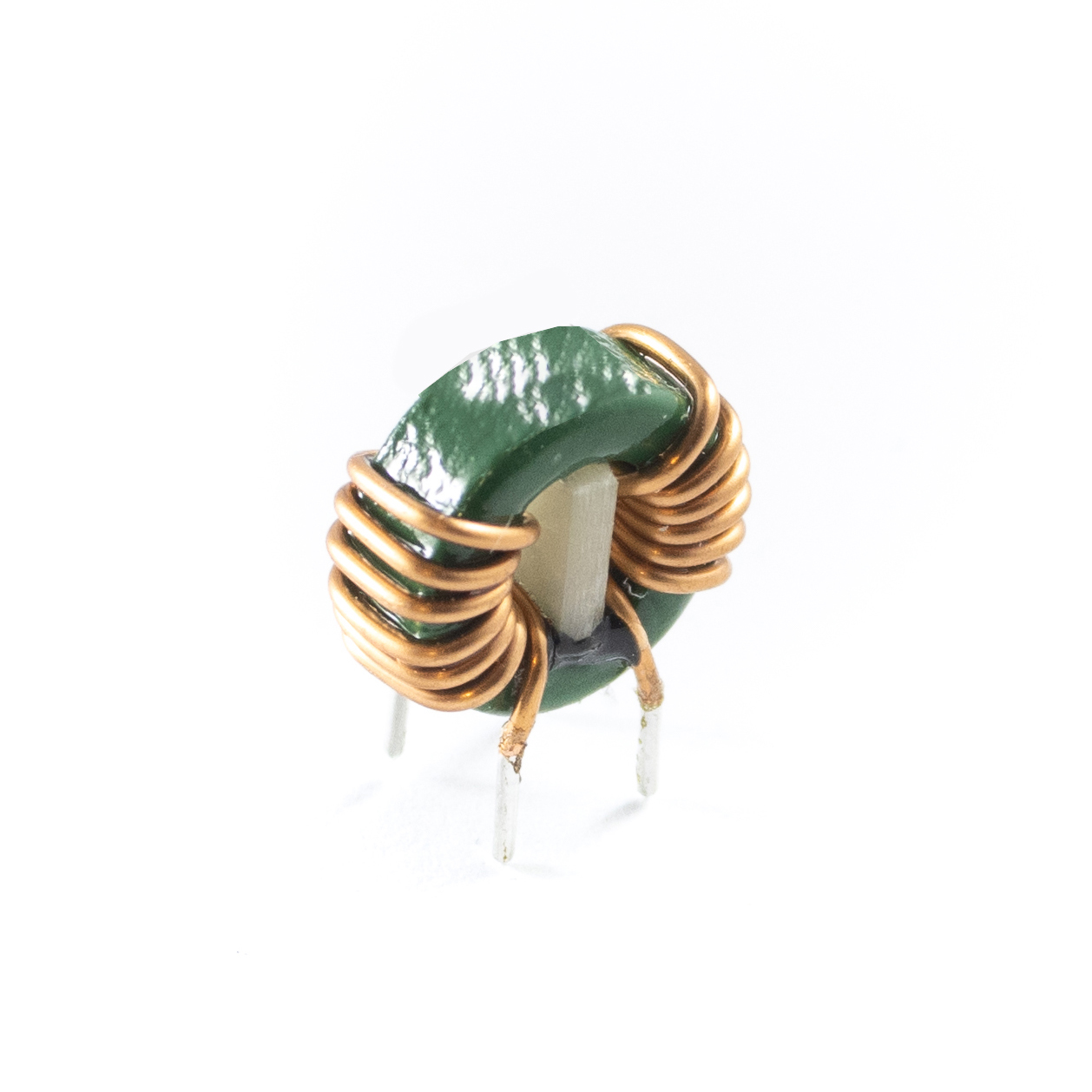

The VCM1308-101 is a through-hole common mode choke manufactured by Allied Components International. It features a vertical package with four PC pins and measures 0.512 inches in diameter and height. The component provides an inductance of 120 µH at 10 kHz with a rated current of 3.5A. Its maximum DC resistance (DCR) is specified at 7.5 mΩ. The device operates within a temperature range of -20°C to +125°C.

Feature Summary

Provides common mode noise suppression for two-line circuits
Designed for through-hole mounting applications
Operates reliably across a wide temperature range

Applications

Power supply input filtering
Signal line noise reduction
EMI suppression in electronic equipment

Procurement Notes

Verify the manufacturer designation as Allied Components International, noting recent corporate acquisitions may affect branding. Confirm the specific inductance value of 120 µH and the 3.5A rated current against official datasheets. Ensure the through-hole package dimensions match the required PCB layout constraints before ordering.

Selection Notes

Select this component when a through-hole solution is required for common mode noise attenuation. Consider the 3.5A current rating and 7.5 mΩ DCR for power efficiency requirements. Verify that the vertical package style fits the mechanical assembly space and that the operating temperature range meets environmental specifications.

Part Context

This component belongs to the VCM series of common mode chokes from Allied Components International. The series offers various inductance values and current ratings for different filtering needs. The VCM1308-101 specifically targets applications requiring robust through-hole mounting and moderate current handling capabilities.
