VCMB2313-502

Overview

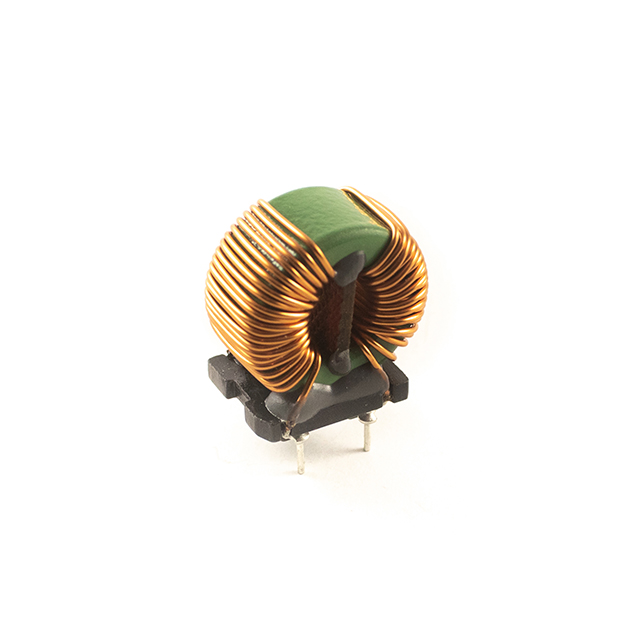

The VCMB2313-502 is a common mode choke manufactured by Allied Components International. It features a 5 mH inductance and supports a current rating of 2.5 A. The component utilizes a two-line through-hole construction. Its design targets electromagnetic interference suppression in electronic circuits requiring robust magnetic filtering capabilities.

Feature Summary

• Provides common mode noise attenuation for differential signal lines
• Utilizes through-hole mounting technology for secure mechanical attachment
• Engineered with ferrite core materials for effective high-frequency impedance

Applications

• Telecommunications equipment signal line protection
• Industrial control system data interface filtering
• Power supply input/output noise suppression

Procurement Notes

Verify the manufacturer part number against official Allied Components International documentation to ensure authenticity. Confirm that the specified inductance and current ratings align with your circuit requirements before procurement. Request updated datasheets directly from authorized distributors to validate current production status and technical specifications.

Selection Notes

Select this component when designing circuits requiring significant common mode rejection at low frequencies. Ensure the physical footprint accommodates through-hole assembly processes. Evaluate the saturation current characteristics against peak load conditions to prevent performance degradation during transient events.

Part Context

Allied Components International specializes in magnetic components for LAN, telecom, and industrial applications. This series represents standard industry-compatible chokes designed for reliable noise suppression in sensitive electronic environments.

Replacement Considerations

Consult official substitution guides for equivalent inductance and current ratings. Verify pin compatibility and physical dimensions before integrating alternative parts into existing layouts.
