Product Detailed Parameters
- Description：CMC 6MH 10A 2LN TH
- Series：-
- Mfr：Allied Components International
- Package：Box
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：12mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.575" L x 1.024" W (40.00mm x 26.00mm)
- Height (Max)：1.575" (40.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：6 mH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

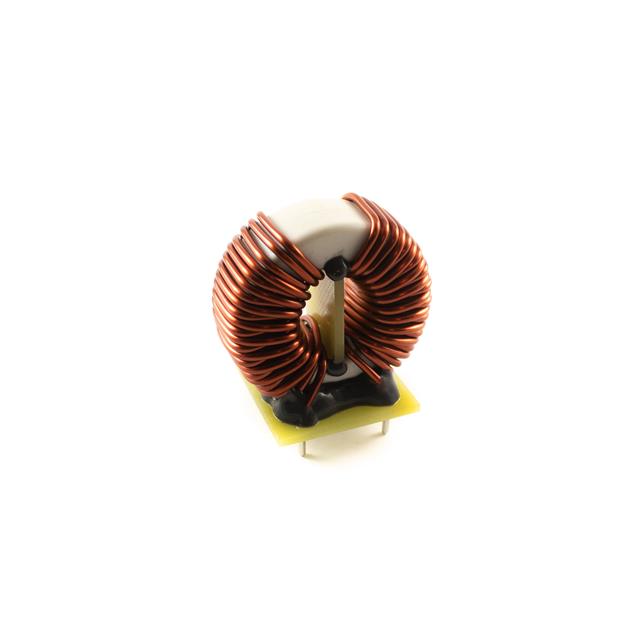

The VCMB4332-602-10A is a through-hole common mode choke manufactured by Allied Components International. It features an inductance of 6 mH at 100 kHz and supports a maximum current rating of 10 A. The component has a typical DC resistance (DCR) of 12 mOhm and is designed for two-line applications. Its physical height is specified at a maximum of 1.575 inches (40.00 mm). This part belongs to the VCMB4332 series, which utilizes wirewound technology for fixed inductance performance.
Feature Summary
- Provides common mode noise suppression for dual-line circuits
- Utilizes wirewound construction for stable inductance characteristics
- Designed for through-hole mounting on printed circuit boards
Applications
- Power supply input filtering
- Data line noise suppression
- EMI reduction in industrial equipment
Procurement Notes
Verify the specific datasheet version from Allied Components International to confirm mechanical dimensions and electrical tolerances. Ensure the through-hole footprint matches the target PCB layout. Cross-reference the 6 mH inductance value with system requirements to confirm adequate noise attenuation at the operating frequency of 100 kHz.
Selection Notes
Select this component when high current handling capability of 10 A is required alongside significant common mode impedance. The through-hole package offers robust mechanical stability compared to surface mount alternatives. Consider the 12 mOhm DCR for power loss calculations in low-voltage applications where efficiency is critical.
Part Context
This component is part of the VCMB4332 series from Allied Components International, a manufacturer specializing in magnetic products including inductors and ferrite beads. The series focuses on providing reliable passive components for electronic circuits requiring effective electromagnetic interference mitigation and signal integrity preservation in noisy environments.
Replacement Considerations
The VCMB3023-601 is a related component from the same manufacturer but differs in specifications, offering 600 µH inductance and a 15 A current rating. Verify that the lower inductance and higher current capacity of the substitute meet the specific circuit requirements before implementation.
