Product Detailed Parameters
- Description：CMC 500UH 35A 2LN TH
- Series：-
- Mfr：Allied Components International
- Package：Box
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：35A
- DC Resistance (DCR) (Max)：2.3mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.850" L x 0.925" W (47.00mm x 23.50mm)
- Height (Max)：1.693" (43.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：500 µH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

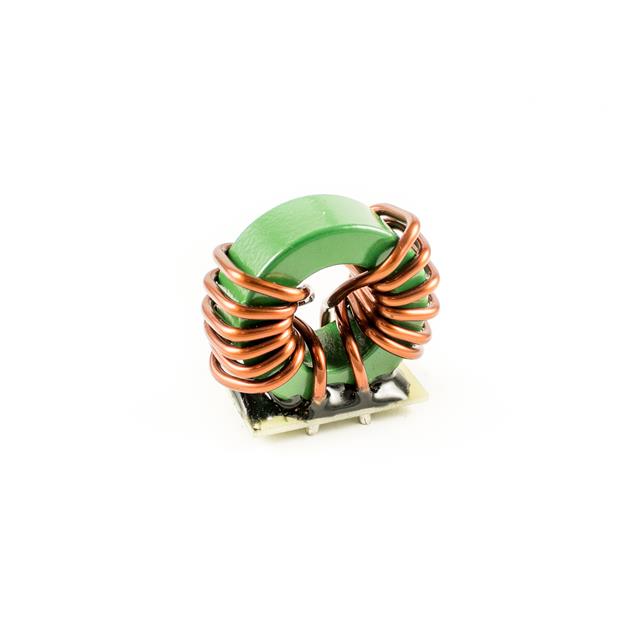

The VCMB744826-501N is a power line common mode choke manufactured by Allied Components International. It features an inductance of 500 µH measured at 100 kHz and supports a maximum current rating of 35A. The component has a maximum DC resistance (DCR) of 2.3 mOhm. Designed for through-hole mounting, it serves as a general-purpose inductor for filtering applications.
Feature Summary
- Provides common mode noise suppression for power lines
- Supports high current handling capabilities
- Utilizes through-hole technology for board integration
Applications
- Power line filtering
- Common mode choke applications
- General purpose inductor circuits
Procurement Notes
Verify the exact part number VCMB744826-501N against official Allied Components International documentation to ensure correct specifications. Confirm that the 500 µH inductance and 35A current rating match your design requirements. Check for any specific ordering suffixes or packaging variations that may affect compatibility with your assembly process.
Selection Notes
Select this component when a high-current common mode choke is required for power line applications. Ensure the PCB layout accommodates the through-hole package dimensions and height constraints. Verify that the 2.3 mOhm DCR meets thermal and efficiency targets for the intended circuit load.
Part Context
Allied Components International manufactures magnetic components including inductors and ferrite beads. This part belongs to their power line common mode choke series, designed for industrial and commercial electronic equipment requiring effective electromagnetic interference suppression.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult manufacturer cross-reference guides for verified alternatives.
