Product Detailed Parameters
- Description：CMC 2MH 6.6A 2LN TH
- Series：VCMB810
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：6.6A
- DC Resistance (DCR) (Max)：22mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.200" L x 0.600" W (30.48mm x 15.24mm)
- Height (Max)：1.200" (30.48mm)
- Package / Case：Radial, Vertical, 4 Leads (Open)
- Inductance @ Frequency：2 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

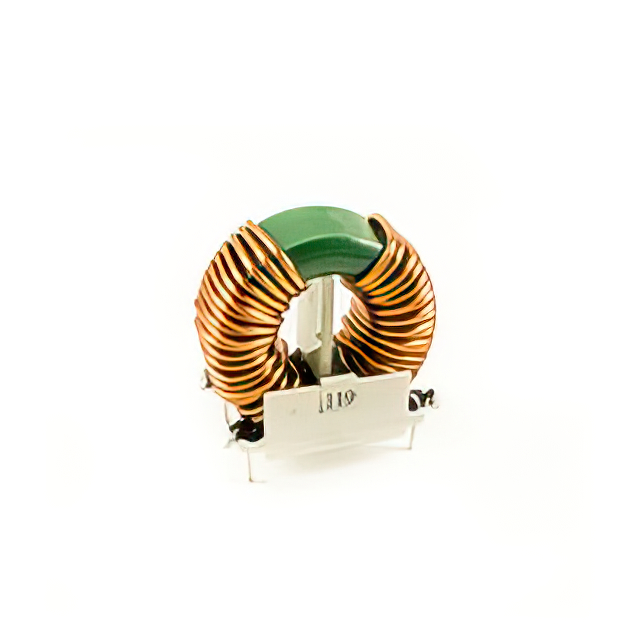

The VCMB8107-RC is a through-hole common mode choke manufactured by Allied Components International. It features a base-mounted design with two lines and a nominal inductance of 2 mH. The component supports a current rating of 6.6 A and utilizes a vertical package configuration with four PC pins for board mounting.
Feature Summary
- Common mode noise suppression via dual-line architecture
- Base-mounted construction for mechanical stability
- Through-hole vertical pin configuration
Applications
- Power supply input filtering
- EMI suppression in AC/DC converters
- Signal line protection against common mode interference
Procurement Notes
Verify the specific datasheet version to confirm exact electrical tolerances and thermal ratings. Ensure the procurement documentation matches the manufacturer's official specifications for the VCMB8107-RC part number. Cross-reference the pinout and physical dimensions with the target PCB layout before finalizing orders.
Selection Notes
Select this component when high current handling up to 6.6 A is required alongside common mode noise reduction. The base-mounted form factor suits applications needing robust mechanical attachment. Verify that the 2 mH inductance value aligns with the intended frequency range for effective EMI attenuation in the specific circuit design.
Part Context
This component belongs to the fixed inductor category, specifically designed as a common mode choke. It serves as a passive electronic component used to suppress electromagnetic interference in circuits carrying alternating current or sensitive signals.
