Product Detailed Parameters
- Description：CMC 2MH 6.6A 2LN TH
- Series：-
- Mfr：Allied Components International
- Package：Box
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：6.6A
- DC Resistance (DCR) (Max)：22mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.200" L x 0.600" W (30.48mm x 15.24mm)
- Height (Max)：1.200" (30.48mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：2 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

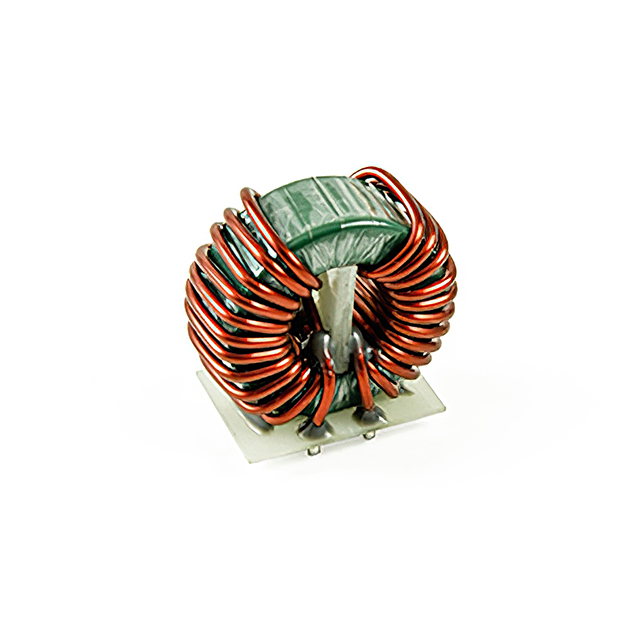

The VCMBE8107-RC is a through-hole common mode choke manufactured by Allied Components International. It features a two-line configuration designed for electromagnetic interference suppression. The component has a nominal inductance of 2 mH and supports a current rating of 6.6 A. Its physical dimensions are 1.200 inches in length by 0.600 inches in width, equivalent to 30.48 mm x 15.24 mm. The device operates within a temperature range of -55°C to +105°C.
Feature Summary
- Provides simultaneous noise suppression on multiple signal lines
- Utilizes a through-hole mounting type for secure board attachment
- Features a base-mounted design structure
Applications
- Electromagnetic interference filtering in power circuits
- Signal line protection in telecommunications equipment
- Noise reduction in industrial control systems
Procurement Notes
Verify the specific datasheet version before procurement to ensure compatibility with your circuit requirements. Confirm that the through-hole package dimensions align with your PCB layout constraints. Check the current rating against your maximum load conditions to prevent saturation. Ensure the operating temperature range meets your environmental specifications. Contact the manufacturer or authorized distributors for official documentation updates.
Selection Notes
Select this component when a 2 mH inductance value is required for common mode noise attenuation. Consider the 6.6 A current rating for applications involving moderate power levels. The through-hole format is suitable for designs prioritizing mechanical stability over surface area efficiency. Evaluate the physical footprint of 30.48 mm x 15.24 mm against available board space. Verify thermal performance capabilities within the specified -55°C to +105°C range.
Part Context
Allied Components International designs and manufactures magnetic components for commercial and industrial markets. This common mode choke belongs to their standard product line aimed at noise suppression. The company has been producing such components since 1992, focusing on both custom and industry-standard solutions for networking and power conversion applications.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference list for verified alternatives. Ensure any replacement matches the 2 mH inductance, 6.6 A current rating, and through-hole package specifications.
