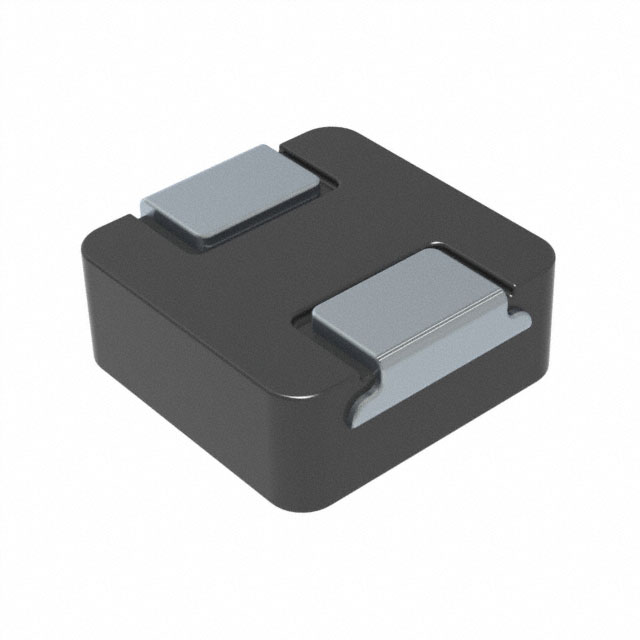

VCMT063T-2R2MN5T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Delta Electronics/Cyntec. Its product description is FIXED IND 2.2UH 9A 16.5MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for VCMT063T-2R2MN5T
- Description：FIXED IND 2.2UH 9A 16.5MOHM SMD
- Series：VCMT063T
- Mfr：Delta Electronics/Cyntec
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：Metal
- Inductance：2.2 µH
- Tolerance：±20%
- Current Rating (Amps)：9:00 AM
- Current - Saturation (Isat)：8A
- Shielding：Shielded
- DC Resistance (DCR)：16.5mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 155°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.274" L x 0.260" W (6.95mm x 6.60mm)
- Height - Seated (Max)：0.118" (3.00mm)
- Features：-
Fixed Inductors datasheet and documents for VCMT063T-2R2MN5T
Fixed Inductors Overview
The VCMT063T-2R2MN5T is a shielded surface-mount fixed inductor from the VCMT063T series by Delta Electronics/Cyntec. It features a metal core and offers an inductance of 2.2 µH with a tolerance of ±20%. The component has a maximum DC resistance (DCR) of 16.5 mΩ, a rated current of 9 A, and a saturation current (Isat) of 8 A. Designed for operation between -55°C and 155°C, it measures 0.274 inches long by 0.260 inches wide with a maximum height of 0.118 inches.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference
- Metal core material supports high-current applications
- Wide operating temperature range ensures reliability
- Surface-mount package facilitates automated assembly
Fixed Inductors Applications
- Automotive power choke circuits
- Consumer power choke applications
- Embedded communication systems
Fixed Inductors Procurement Notes
Verify the manufacturer part number VCMT063T-2R2MN5T against official Delta Electronics or Cyntec documentation to confirm specifications. Ensure compatibility with surface-mount reflow processes. Check RoHS3 compliance status if required by project regulations. Confirm packaging type availability matches production needs.
Fixed Inductors Selection Notes
Select this component when a 2.2 µH inductance with 9 A rated current is required. Consider the 16.5 mΩ DCR for efficiency calculations. Verify that the 8 A saturation current meets peak load requirements. Ensure the physical dimensions fit the designated PCB footprint.
Fixed Inductors Part Context
This part belongs to the VCMT063T series of fixed power chokes. The series includes variants with different inductance values such as VCMT063T-100MN5T and VCMT063T-6R8MN5T. These components are designed for high-performance power filtering in compact electronic designs.
Fixed Inductors Replacement Considerations
Cross-reference with other VCMT063T series parts like VCMT063T-100MN5T for similar form factors. Verify electrical parameters match specific circuit requirements before substitution.
