VEMI65A6-FC2-GS08

Overview

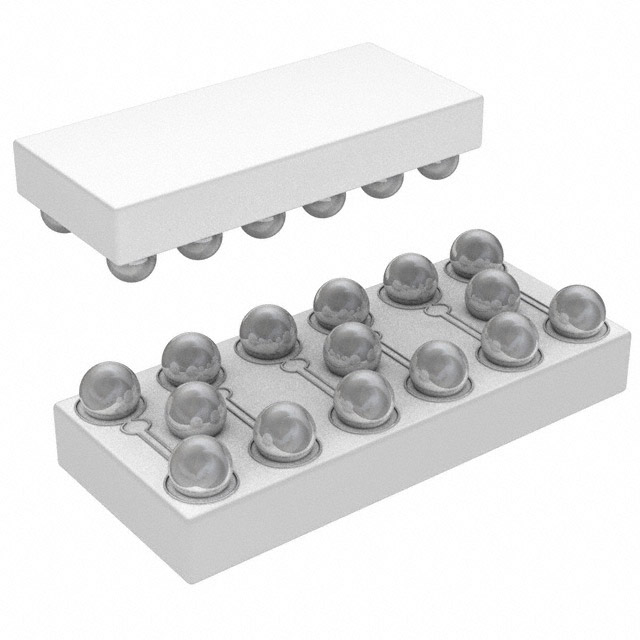

The VEMI65A6-FC2-GS08 is a surface-mount RC (Pi) EMI filter manufactured by Vishay General Semiconductor - Diodes Division. It features a low-pass configuration with a resistance of 100 Ohms and capacitance of 90 pF. The component utilizes an SMD package and operates within a temperature range of -40°C to +125°C.

Feature Summary

• Provides effective electromagnetic interference suppression through a Pi-filter topology
• Integrates resistive and capacitive elements for compact circuit protection
• Designed for high-temperature operation in demanding electronic environments

Applications

• General-purpose signal line filtering
• Power supply noise reduction
• Data interface protection

Procurement Notes

Verify the specific suffix FC2 against official datasheets to confirm the 90pF capacitance value, as suffixes often denote critical parameter variations. Ensure the supplier provides traceable documentation confirming the Vishay General Semiconductor origin and RoHS compliance status prior to purchase.

Selection Notes

Select this component when a compact, integrated solution for EMI suppression is required on signal or power lines. The 100 Ohm resistance and 90 pF capacitance values are suitable for specific frequency attenuation requirements. Verify that the SMD footprint matches the PCB layout constraints and that the operating temperature range meets the system's thermal specifications.

Part Context

This part belongs to the VEMI series of RC filters from Vishay. These components combine passive R and C elements into a single surface-mount device to save board space compared to discrete implementations. The series offers various configurations for different filtering needs.

Replacement Considerations

Direct substitutes may include other Vishay VEMI series parts with matching 100 Ohm/90 pF specifications and compatible packages. Cross-brand replacements require verifying identical electrical characteristics and physical dimensions.
