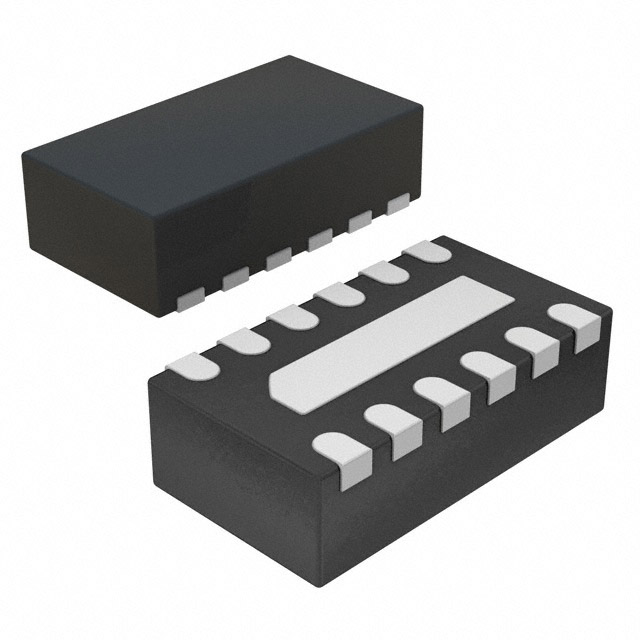

VEMI65AA-HCI-GS08

$0.42

Description：FILTER RC(PI) 100 OHMS ESD SMD
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3e4ddeaa365a Category: EMI/RFI Filters (LC, RC Networks) Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER RC(PI) 100 OHMS ESD SMD
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Low Pass
Filter Order：2nd
Technology：RC (Pi)
Number of Channels：6
Center / Cutoff Frequency：100MHz (Cutoff)
Attenuation Value：-
Resistance - Channel (Ohms)：100
Values：R = 100Ohms, C = 36pF
ESD Protection：Yes
Operating Temperature：-40°C ~ 125°C
Applications：Data Lines for Mobile Devices
Voltage - Rated：-
Mounting Type：Surface Mount
Package / Case：13-UFDFN Exposed Pad
Size / Dimension：0.098" L x 0.053" W (2.50mm x 1.35mm)
Height：0.024" (0.60mm)
Current：4:00 AM
Grade：-
Qualification：-

Download product information

VEMI65AA-HCI-GS08

Overview

The VEMI65AA-HCI-GS08 is a surface-mount RC (PI) filter manufactured by Vishay General Semiconductor. It integrates a 100 Ohm resistor and a 36 pF capacitor within a single compact package. Designed for electromagnetic interference suppression, this component provides efficient signal filtering in high-density circuit layouts. The device operates as a passive low-pass filter, combining resistive damping with capacitive shunting to attenuate high-frequency noise effectively.

Feature Summary

Integrates a 100 Ohm resistor and 36 pF capacitor in a unified surface-mount package
Provides effective electromagnetic interference suppression through combined resistive and capacitive filtering
Designed for space-constrained applications requiring efficient signal integrity management

Applications

High-speed data line filtering
Clock signal noise attenuation
General-purpose EMI suppression in compact electronics

Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet to ensure compatibility with current design requirements. Confirm that the integrated RC values match the target application's frequency response needs. Check for any recent product change notices regarding manufacturing location or material composition updates before finalizing procurement.

Selection Notes

Select this component when a compact solution is required for suppressing high-frequency noise on signal lines without occupying multiple board positions. Ensure the 100 Ohm resistance value aligns with the source impedance and the 36 pF capacitance meets the desired cutoff frequency specifications for the targeted application bandwidth.

Part Context

This part belongs to Vishay's family of integrated passive devices designed for miniaturization. Unlike discrete components, it combines filtering elements into one footprint, reducing assembly complexity and improving reliability by minimizing solder joints. It serves as a direct replacement for separate resistor-capacitor networks in noise-sensitive circuits.
