VFHV1104LS-TR

LED Indication - Discrete Overview

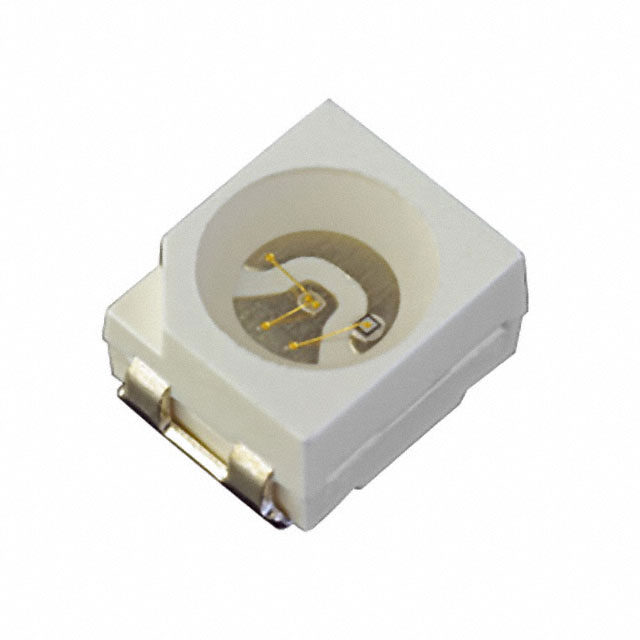

The VFHV1104LS-TR is a single-color surface mount LED manufactured by Stanley Electric, designed for SMD/SMT installation. It emits red light with a peak wavelength of 616 nm and features a PLCC-2 package. Key electrical parameters include a forward current (If) of 50 mA, a forward voltage (Vf) of 2.2 V, and a power rating of 78 mW. The component has a water-clear lens with a dome shape and offers a viewing angle of 80 degrees x 65 degrees. It operates within a temperature range of -40°C to +100°C and exhibits moisture sensitivity.

LED Indication - Discrete Feature Summary

• Emits red light at a 616 nm wavelength
• Utilizes a PLCC-2 surface mount package
• Features a water-clear dome-shaped lens

LED Indication - Discrete Applications

• Indicator lights in electronic devices
• Status displays on control panels
• General-purpose illumination in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the exact part number against official Stanley Electric documentation to ensure compatibility with design requirements. Confirm that the PLCC-2 package dimensions and pin configuration match the PCB footprint. Check for moisture sensitivity level (MSL) ratings to determine proper storage and handling procedures during assembly. Ensure that the thermal management capabilities align with the intended operating environment and power dissipation limits.

LED Indication - Discrete Selection Notes

Select this component when a compact red indicator is required for surface mount applications. The PLCC-2 package provides a standard form factor suitable for automated placement. Consider the 50 mA forward current capability for brightness requirements while ensuring the circuit design accommodates the 2.2 V forward voltage drop. Evaluate the 80° x 65° viewing angle to confirm adequate visibility for the specific application layout.

LED Indication - Discrete Part Context

This component belongs to Stanley Electric's portfolio of single-color surface mount LEDs. It is part of the broader category of optoelectronic components used for visual signaling. The PLCC-2 package is a common industry standard for low-power LED indicators, facilitating easy integration into various printed circuit board designs across multiple product lines.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult official Stanley Electric documentation or authorized distributors for cross-reference information regarding compatible alternatives.
