VFJA1491P-25.000M-25.000M

Clock Generators, PLLs, Frequency Synthesizers Overview

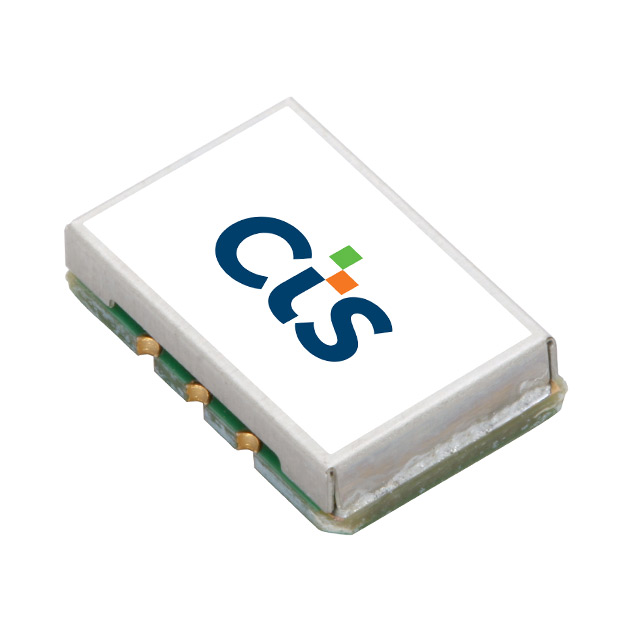

The VFJA1491P-25.000M-25.000M is a clock generator and jitter attenuator integrated circuit manufactured by CTS-Frequency Controls. It operates within a supply voltage range of 3.15V to 3.45V and supports a maximum frequency of 200MHz. The device features two independent circuits housed in a compact 6-SMD Module, No Lead package designed for surface-mount installation. It functions as a low-noise PLL timing module suitable for high-speed digital applications requiring precise clock signal generation and noise reduction.

Clock Generators, PLLs, Frequency Synthesizers Feature Summary

• Integrates clock generation and jitter attenuation capabilities within a single compact module
• Utilizes low-noise PLL technology to ensure stable and clean clock signals
• Designed for surface-mount assembly with a leadless SMD package configuration

Clock Generators, PLLs, Frequency Synthesizers Applications

• High-speed data communication systems
• Network infrastructure equipment
• Server and storage system clock distribution

Clock Generators, PLLs, Frequency Synthesizers Procurement Notes

Verify the specific suffix 'P' against official CTS documentation to confirm package type and pinout compatibility. Ensure the operating temperature range meets your environmental requirements. Confirm RoHS compliance status through current manufacturer datasheets before finalizing procurement plans.

Clock Generators, PLLs, Frequency Synthesizers Selection Notes

Select this component when a combined clock generation and jitter attenuation solution is required in a small form factor. Consider the 200MHz maximum frequency limit and the specific 3.15V-3.45V supply voltage constraints. Evaluate the 6-SMD No Lead package dimensions against your PCB layout space limitations.

Clock Generators, PLLs, Frequency Synthesizers Part Context

This part belongs to the VFJA series of miniature low-noise PLL timing modules from CTS-Frequency Controls. These modules are engineered to provide precise frequency synthesis while minimizing phase noise and jitter, making them essential components in modern electronic designs demanding high signal integrity.
