VFJR1104LS-TR

$0.59

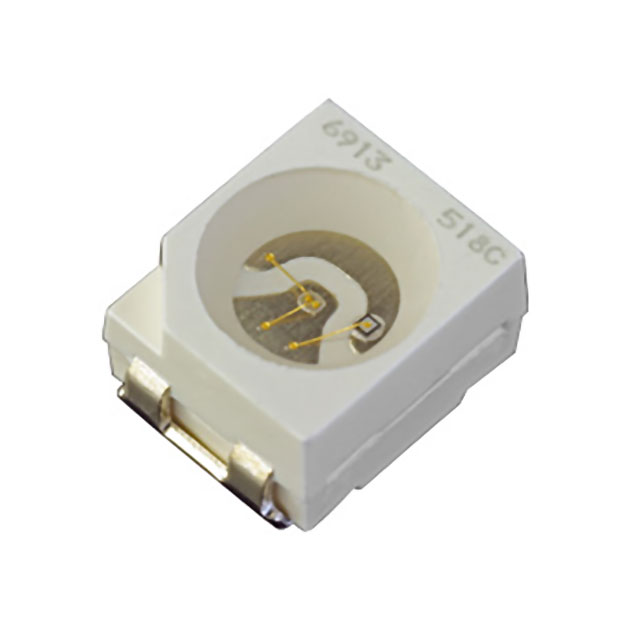

Description：LED RED CLEAR 2PLCC SMD
Series：1104LS
Mfr：Stanley Electric Co
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c5102e94c2d5 Category: LED Indication - Discrete Brand: Stanley Electric Co

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VFJR1104LS-TR is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Stanley Electric Co. Its product description is LED RED CLEAR 2PLCC SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for VFJR1104LS-TR

Description：LED RED CLEAR 2PLCC SMD
Series：1104LS
Mfr：Stanley Electric Co
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：210mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：632nm
Wavelength - Peak：640nm
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-PLCC
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for VFJR1104LS-TR

VFJR1104LS-TR

LED Indication - Discrete Overview

The VFJR1104LS-TR is a single-color surface-mount LED manufactured by Stanley Electric Co. It features a PLCC-2 package with dimensions of 3.5 mm in length, 2.8 mm in width, and 1.9 mm in height. The component emits red light at a peak wavelength of 622 nm. Key electrical parameters include a forward voltage of 2.2 V and a maximum forward current of 50 mA. The optical intensity is rated at 170 mcd, with a viewing angle of 120 degrees horizontally and vertically.

LED Indication - Discrete Feature Summary

Utilizes a standard PLCC-2 surface mount package for automated assembly compatibility
Features a water-clear lens to maximize light transmission efficiency
Designed for high-brightness indication applications within industrial electronics

LED Indication - Discrete Applications

Status indicator lights on electronic control panels
Power supply status indicators
Medical device operational signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the official datasheet to ensure correct wavelength and intensity specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement. Ensure the ordering part number matches the exact reel or cut tape packaging format required for the production line equipment.

LED Indication - Discrete Selection Notes

Select this component when a standard red SMD LED with PLCC-2 footprint is required. Consider the 50 mA forward current rating for drive circuit design. Evaluate the 120-degree viewing angle against visibility requirements. Compare luminous intensity against ambient lighting conditions to ensure adequate signal visibility.

LED Indication - Discrete Part Context

This component belongs to the 1104LS series of single-color LEDs from Stanley Electric. The series offers various color options within the same mechanical footprint. It serves as a direct replacement for legacy through-hole components in modern compact PCB designs requiring standardized mounting profiles.
