Product Detailed Parameters
- Description：FERRITE BEAD 1.232 KOHM 2424 1LN
- Series：VFS
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：1
- Impedance @ Frequency：1.232 kOhms @ 1 MHz
- Current Rating (Max)：500mA
- DC Resistance (DCR) (Max)：1.495Ohm
- Ratings：-
- Operating Temperature：-40°C ~ 105°C
- Package / Case：2424 (6060 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.177" (4.50mm)
- Size / Dimension：0.236" L x 0.236" W (6.00mm x 6.00mm)
- Features：-
Download product information
Overview

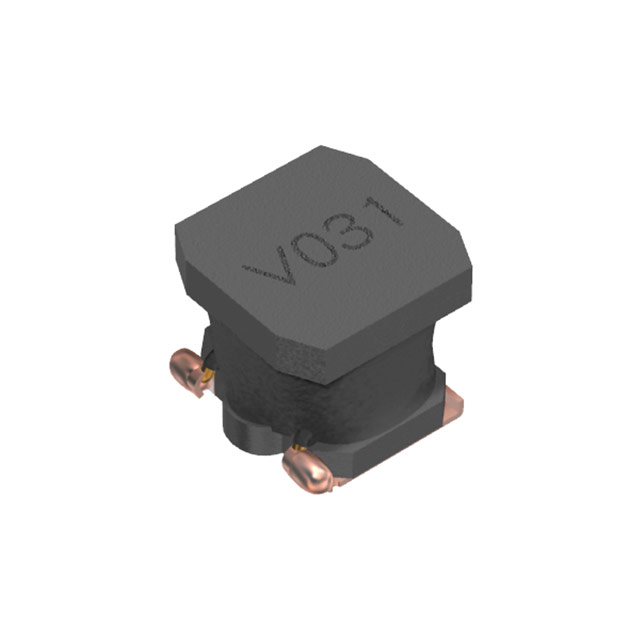

The TDK VFS6045SA102 is a single-line ferrite bead designed for power line noise suppression. It features a 2424 (6060 metric) surface-mount package with dimensions of 6.00mm x 6.00mm and a maximum height of 4.50mm. The component provides an impedance of 1.232 kOhms at 1 MHz and supports a maximum DC current of 500 mA. Its maximum DC resistance is 1.495 Ohms, and it operates within a temperature range of -40°C to +105°C.
Feature Summary
- Designed for high-frequency interference reduction on DC power lines
- Single-line configuration for compact circuit integration
- Surface-mount construction compatible with automated assembly processes
Applications
- Noise suppression in home appliance power circuits
- High-frequency interference filtering for DC power supplies
- Signal integrity protection in compact electronic devices
Procurement Notes
Verify the specific suffix SA102 against official TDK documentation to confirm impedance and current ratings. Ensure the ordering code matches the required packaging format, such as tape and reel or cut tape, as availability varies by distributor. Confirm RoHS compliance status directly from the manufacturer's datasheet before finalizing procurement specifications.
Selection Notes
Select this component when a single-line ferrite bead is required for power line filtering with a 500 mA current rating. The 2424 package size suits applications with limited board space. Verify that the 1.232 kOhm impedance at 1 MHz aligns with the target noise frequency spectrum. Ensure the operating temperature range meets the environmental requirements of the end application.
Part Context
This part belongs to the TDK VFS series of noise suppression filters. The series offers various impedance and current ratings within standardized surface-mount packages. The VFS6045SA102 specifically targets power line applications requiring moderate current handling and significant high-frequency attenuation in a compact form factor.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult TDK technical support or authorized distributors for verified equivalents that match the electrical and mechanical specifications.
