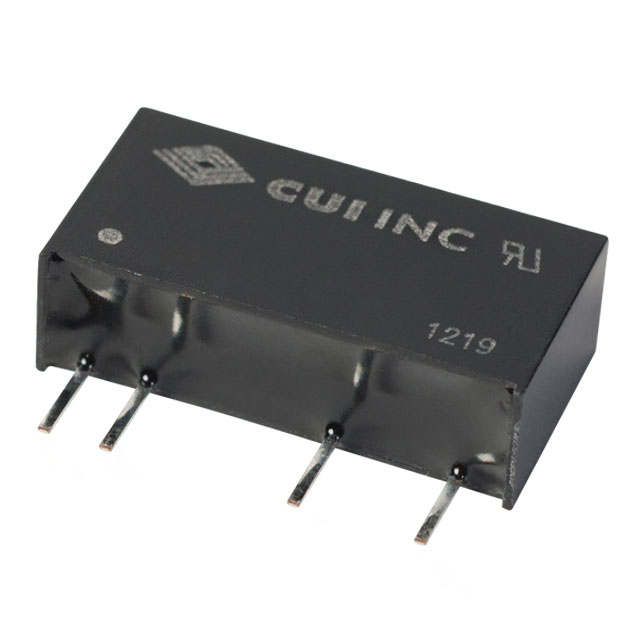

VFSD1-S3.3-S3.3-SIP

VFSD1-S3.3-S3.3-SIP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC DC CONVERTER 3.3V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for VFSD1-S3.3-S3.3-SIP

• Description：DC DC CONVERTER 3.3V 1W
• Series：VFSD1-SIP (1W)
• Mfr：CUI Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：3.6V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：300mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：72%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.39" H (19.6mm x 6.0mm x 10.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for VFSD1-S3.3-S3.3-SIP
