VFT69383W2NJN-518Q

$104.12

Description：ANT LOW PROFILE 3-PORT SHARKFIN
Series：-
Mfr：TE Connectivity
Package：Bulk

SKU:6d8c7f8939ea Category: RF Antennas Brand: TE Connectivity

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VFT69383W2NJN-518Q is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is ANT LOW PROFILE 3-PORT SHARKFIN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for VFT69383W2NJN-518Q

Description：ANT LOW PROFILE 3-PORT SHARKFIN
Series：-
Mfr：TE Connectivity
Package：Bulk
RF Family/Standard：Cellular, General ISM, Navigation
Frequency Group：Wide Band
Frequency (Center/Band)：752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz
Frequency Range：698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz
Antenna Type：Dome
Number of Bands：12
VSWR：2
Return Loss：-
Gain：0.7dBi, 0.5dBi, 0.2dBi, 3.4dBi, 4.9dBi, 5.4dBi, 3.7dBi, 3dBi, 2.5dBi, 3.7dBi, 4.6dBi, 5.5dBi
Features：Cable - 5.18m, LNA
Termination：SMA Male (2)
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：1.890" (48.00mm)
Applications：3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE
Power - Max：10 W

Antennas RF datasheet and documents for VFT69383W2NJN-518Q

VFT69383W2NJN-518Q

Antennas RF Overview

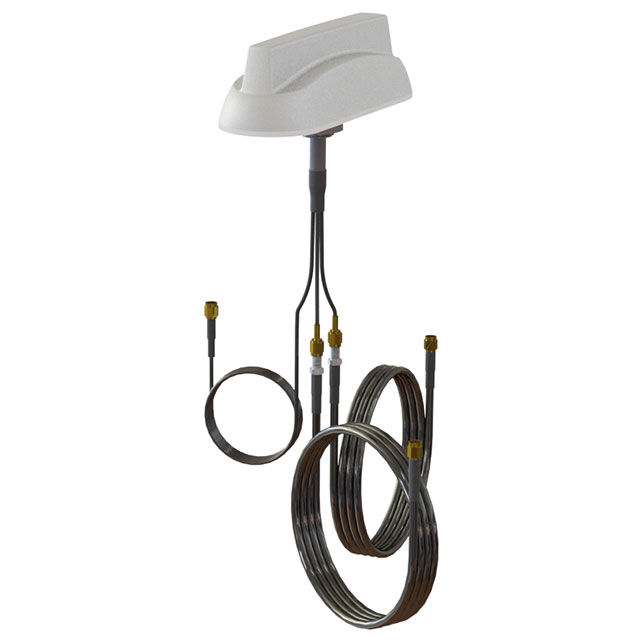

The VFT69383W2NJN-518Q is a vehicular MIMO antenna by TE Connectivity designed for LTE, GNSS, and Wi-Fi applications. It features a shark fin form factor with external panel mounting via stud, screw, or lug. The unit includes a 5.18-meter cable with an integrated Low Noise Amplifier (LNA). Termination utilizes two SMA male connectors. Key electrical parameters include a 50 Ohm impedance, IP67 ingress protection rating, and a maximum operating temperature of +70°C. Maximum power handling is rated at 10 W, with a maximum frequency of 3.8 GHz.

Antennas RF Feature Summary

Multi-band support for cellular, GNSS, and Wi-Fi signals
Integrated Low Noise Amplifier (LNA) within the cable assembly
Shark fin design optimized for vehicular aerodynamics
Robust IP67 environmental sealing for outdoor durability

Antennas RF Applications

LTE network connectivity in vehicles
GNSS positioning systems
Wi-Fi data transmission

Antennas RF Procurement Notes

Verify the specific model suffix to confirm the cable length and connector configuration, as variations exist within the product family. Ensure compatibility with the vehicle's mounting surface and RF interface requirements. Cross-reference the LNA specifications against system power budgets. Confirm that the SMA male termination matches the receiving equipment ports. Validate environmental ratings against the intended operational climate conditions.

Antennas RF Selection Notes

Select this component when a compact, aerodynamic solution is required for mobile platforms supporting multiple wireless standards. The integrated LNA enhances signal reception for weak GNSS or cellular sources. Consider the 5.18-meter cable length for routing flexibility between the roof mount and internal electronics. Verify that the 10 W power rating aligns with transmitter output capabilities if used for bidirectional communication.

Antennas RF Part Context

This part belongs to TE Connectivity’s vehicular antenna portfolio, specifically engineered for multi-port MIMO applications. It addresses the need for consolidated RF solutions in modern connected vehicles, reducing the number of external mounts while maintaining performance across diverse frequency bands including LTE and GNSS.
