VH-4AW-X UL (WT)

Headers, Male Pins Overview

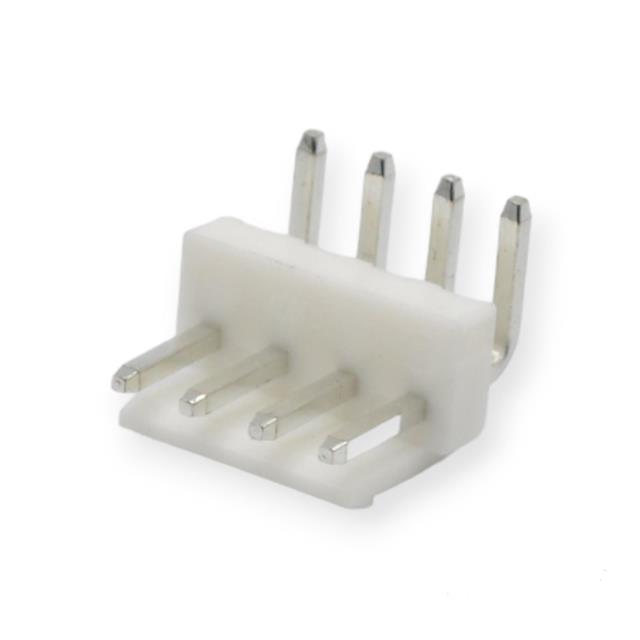

The VH-4AW-X UL (WT) is a rectangular connector header manufactured by CWB Electronics Inc. It features a right-angle configuration with four positions and a 3.96mm pitch. The component is designed for surface or through-hole mounting applications requiring reliable signal or power interconnection. This specific part number denotes the header housing variant within the VH series, characterized by its compact form factor and standardized pin spacing suitable for dense circuit board layouts.

Headers, Male Pins Feature Summary

• Right-angle header design for space-efficient PCB mounting
• Four-position configuration with 3.96mm pitch
• UL certified for safety compliance in electrical applications

Headers, Male Pins Applications

• Automotive electronic systems
• Consumer electronics assemblies
• Industrial control circuits

Headers, Male Pins Procurement Notes

Verify the exact suffix requirements against the official CWB Electronics datasheet to ensure compatibility with mating housings and terminals. Confirm that the UL certification listing E200881 applies to the specific material composition and rating required for your application's safety standards. Cross-reference the pin count and pitch specifications to prevent mismatching with existing board designs.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header with a 3.96mm pitch is required for four-wire connections. Ensure the PCB layout accommodates the right-angle footprint and verify that the mating housing corresponds to the VH series specifications. Consider thermal and current ratings if used in high-power applications, although specific limits are not detailed in general summaries.

Headers, Male Pins Part Context

This component belongs to the VH series of connectors from CWB Electronics, which specializes in automotive and consumer electronic interconnects. The series includes various pin counts and configurations, such as vertical and right-angle headers. The VH-4AW-X variant specifically addresses the need for compact, angled connections in constrained spaces.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 3.96mm pitch, 4-position count, and right-angle orientation. Verify mechanical dimensions and UL file numbers for equivalent parts from other manufacturers to ensure interchangeability without redesigning the PCB.
