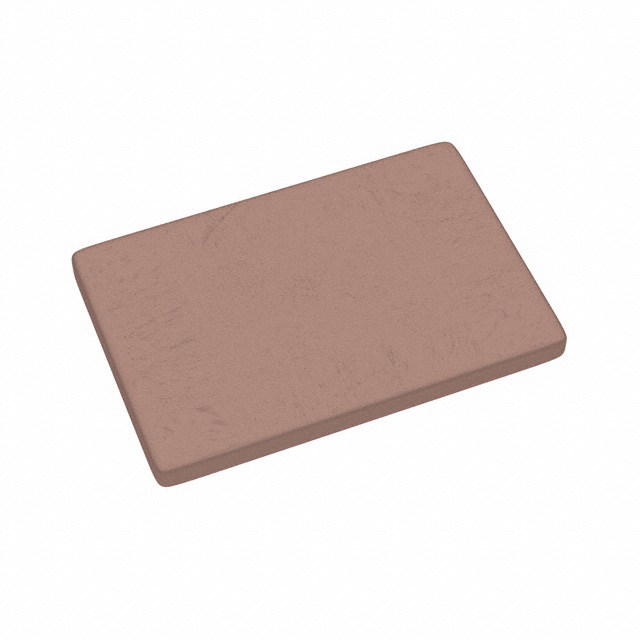

VJ6040M011SXISRA0 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Vishay Vitramon. Its product description is RF ANT CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for VJ6040M011SXISRA0
- Description：RF ANT CHIP SOLDER SMD
- Series：-
- Mfr：Vishay Vitramon
- Package：Tape & Reel (TR)
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：-
- Frequency Range：470MHz ~ 860MHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：-2dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.047" (1.20mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for VJ6040M011SXISRA0
Antennas RF Overview
The VJ6040M011SXISRA0 is a chip RF antenna manufactured by Vishay Vitramon, designed for surface-mount assembly. It operates within the UHF frequency range of 470MHz to 860MHz. The component features a solder termination type and provides a gain of -2dBi. Its physical dimensions include a maximum height of 0.047 inches (1.20mm). This part is classified as a ceramic chip antenna intended for single-band applications in wireless communication systems.
Antennas RF Feature Summary
- Surface-mount chip design for automated PCB assembly
- Operates within the UHF band from 470MHz to 860MHz
- Utilizes solder termination for reliable electrical connection
Antennas RF Applications
- UHF wireless communication devices
- Industrial telemetry systems
- Remote control transmitters
Antennas RF Procurement Notes
Verify current availability status as this product has been officially declared obsolete with an end-of-production notice dated January 11, 2017. Confirm that existing stock or last-time-buy options meet project requirements before finalizing procurement plans due to discontinued manufacturing status.
Antennas RF Selection Notes
Select this component only if the application specifically requires operation within the 470MHz to 860MHz range and can accommodate a -2dBi gain level. Consider the physical footprint constraints regarding the 1.20mm maximum height. Evaluate alternative active or passive components if long-term supply chain stability is critical for the product lifecycle.
Antennas RF Part Context
This antenna belongs to the VJ6040 series of sub-GHz chip antennas produced by Vishay Vitramon. The series was engineered for compact wireless solutions requiring efficient radiation patterns in small form factors. The specific model represents a standard configuration within this family before its discontinuation.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, engineers must identify equivalent components from other manufacturers or utilize different models within the same manufacturer's portfolio that remain in production.
