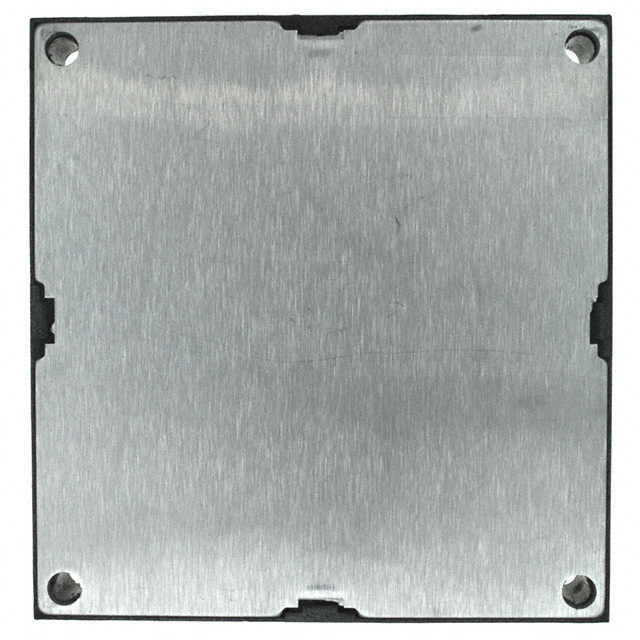

VKP60LT515C

VKP60LT515C is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 5V +/-15V 60W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for VKP60LT515C

• Description：DC DC CONVERTER 5V +/-15V 60W
• Series：VKP60xTC (60W)
• Mfr：Murata Power Solutions Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：3
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：15V
• Voltage - Output 3：-15V
• Voltage - Output 4：-
• Current - Output (Max)：12A, 2A, 2A
• Power (Watts)：60 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 100°C
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：12-DIP Module, 1/2 Brick
• Size / Dimension：2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for VKP60LT515C
