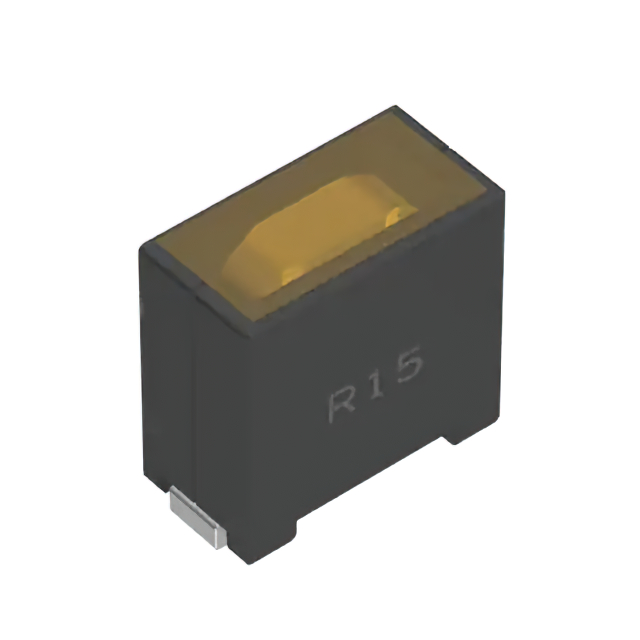

VLBUC12060120R08MF4

$2.65

Description：INDUCTOR
Series：VLBUC
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:869b0c01ab26 Category: Fixed Inductors Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VLBUC12060120R08MF4 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for VLBUC12060120R08MF4

Description：INDUCTOR
Series：VLBUC
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Wirewound
Material - Core：Ferrite
Inductance：80 nH
Tolerance：±20%
Current Rating (Amps)：70 A
Current - Saturation (Isat)：168A
Shielding：Unshielded
DC Resistance (DCR)：0.138mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.472" L x 0.236" W (12.00mm x 6.00mm)
Height - Seated (Max)：0.472" (12.00mm)
Features：-

Fixed Inductors datasheet and documents for VLBUC12060120R08MF4

VLBUC12060120R08MF4

Fixed Inductors Overview

The TDK VLBUC12060120R08MF4 is an unshielded wirewound power inductor designed for Trans-Inductor Voltage Regulator (TLVR) applications. It features a nominal inductance of 80 nH with a tolerance of ±20%. The component supports a maximum DC current of 70 A and a saturation current of 168 A, with a maximum DC resistance of 0.138 mΩ. Operating within a temperature range of -40°C to +125°C, it utilizes a ferrite core and is available in reel, cut tape, or MouseReel packaging.

Fixed Inductors Feature Summary

Engineered specifically for Trans-Inductor Voltage Regulator (TLVR) topologies
High saturation current capability of 168 A for robust transient handling
Unshielded wirewound construction using ferrite core material
Wide operating temperature range from -40°C to +125°C

Fixed Inductors Applications

Trans-Inductor Voltage Regulator (TLVR) circuits
High-current point-of-load (POL) conversion stages
Server and data center voltage regulation modules

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official TDK documentation to confirm exact electrical tolerances and packaging configuration. Ensure that the selected variant matches the required saturation and RMS current ratings for the target TLVR application design. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and authenticity before procurement.

Fixed Inductors Selection Notes

Select this component when designing TLVR systems requiring low inductance values around 80 nH combined with high current handling capabilities. The 168 A saturation current provides significant headroom over the 70 A rated current, suitable for dynamic load conditions. Consider the unshielded nature of the device regarding electromagnetic interference (EMI) layout requirements in dense PCB environments.

Fixed Inductors Part Context

This component belongs to the TDK VLBUC series of surface-mount power inductors. The series is characterized by its specialized design for advanced voltage regulator architectures, offering compact footprints relative to their current capacity. The VLBUC line targets high-performance computing applications where efficiency and transient response are critical.
