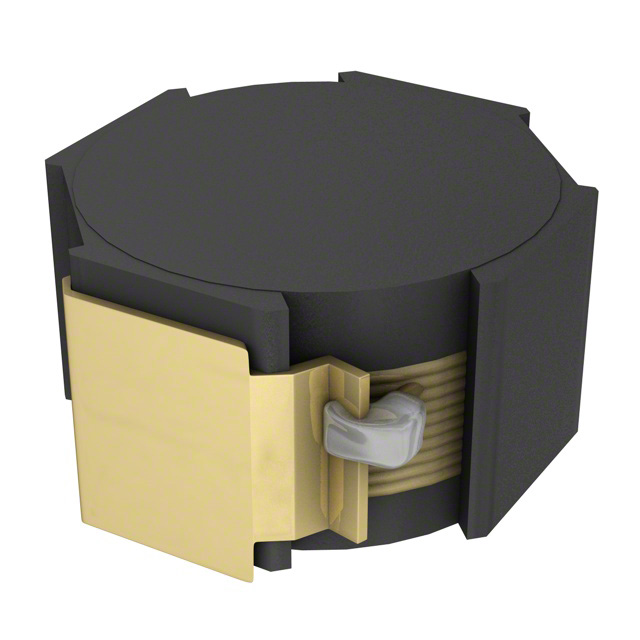

VLF12060T-220M4R1

$1.11

Description：FIXED IND 22UH 4.1A 36 MOHM SMD
Series：VLF
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9392dcb07406 Category: Fixed Inductors Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VLF12060T-220M4R1 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is FIXED IND 22UH 4.1A 36 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for VLF12060T-220M4R1

Description：FIXED IND 22UH 4.1A 36 MOHM SMD
Series：VLF
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：22 µH
Tolerance：±20%
Current Rating (Amps)：4.1 A
Current - Saturation (Isat)：4.1A
Shielding：Shielded
DC Resistance (DCR)：36mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 105°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.472" L x 0.461" W (12.00mm x 11.70mm)
Height - Seated (Max)：0.236" (6.00mm)
Features：-

Fixed Inductors datasheet and documents for VLF12060T-220M4R1

VLF12060T-220M4R1

Fixed Inductors Overview

The TDK VLF12060T-220M4R1 is a surface-mount shielded power inductor from the VLF series. It features a ferrite core and wire-wound construction with an inductance of 22 µH ±20%. The component supports a maximum DC current of 4.1 A and a saturation current of 5.3 A. Its maximum DC resistance is 36 mΩ. The device operates within a temperature range of -40°C to +105°C and is tested at 100 kHz.

Fixed Inductors Feature Summary

Shielded magnetic structure minimizes external electromagnetic interference.
High saturation current capability for stable performance under load.
Low DC resistance design reduces conduction losses.

Fixed Inductors Applications

Voltage Regulator Modules (VRMs)
Notebook computers
Amusement equipment

Fixed Inductors Procurement Notes

Verify component authenticity through authorized channels. Confirm that the specific part number matches project requirements regarding tolerance and current ratings. Check for RoHS compliance status as per manufacturer documentation. Ensure storage conditions adhere to moisture sensitivity level guidelines before assembly.

Fixed Inductors Selection Notes

Select this component for applications requiring compact shielded inductors with high current handling. Evaluate thermal management capabilities given the operating temperature range. Compare electrical parameters against circuit requirements to ensure adequate margin for saturation and DC resistance.

Fixed Inductors Part Context

This part belongs to the TDK VLF12060 series, designed for space-constrained surface-mount applications. The series offers various inductance values tailored for power supply filtering and energy storage in portable electronics and consumer devices.

Fixed Inductors Replacement Considerations

Publicly listed similar alternatives include Würth Elektronik part numbers such as 7443310390. Verify pin compatibility and electrical specifications before substitution.
