Product Detailed Parameters
- Description：CMC 68MH 900MA 2LN TH
- Series：VLF2916-683
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：900mA
- DC Resistance (DCR) (Max)：1.1Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.142" L x 1.102" W (29.00mm x 28.00mm)
- Height (Max)：1.102" (28.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：68 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

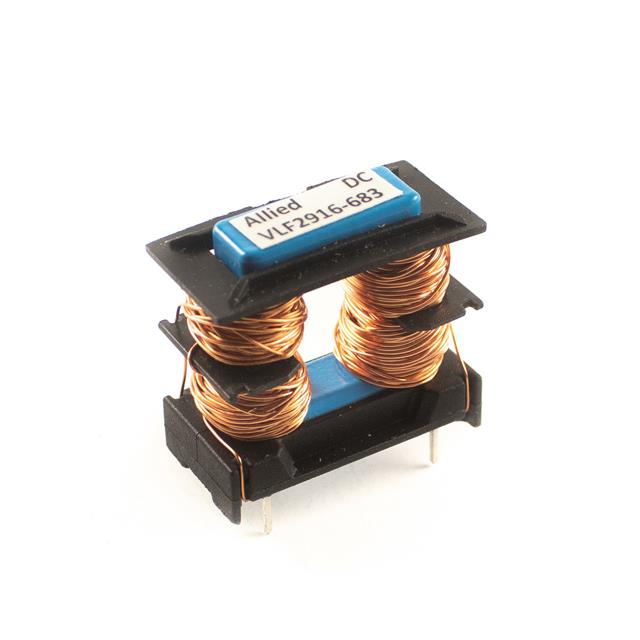

The VLF2916-683 is a common mode choke manufactured by Allied Components International. It features a 68 mH inductance and supports a current rating of 900 mA. The component is designed for two-line configurations and utilizes a through-hole mounting style.
Feature Summary
- Provides common mode noise suppression for dual-line circuits
- Utilizes a through-hole construction method
- Engineered for high inductance applications
Applications
- Signal line filtering
- Power supply noise reduction
- Data bus protection
Procurement Notes
Verify the specific package type and lead configuration against the official datasheet before procurement. Confirm that the 900 mA current rating meets the circuit requirements. Ensure the 68 mH inductance value aligns with the design specifications. Check for any specific handling instructions provided by the manufacturer.
Selection Notes
Select this component when a high inductance value is required for common mode interference suppression in through-hole designs. Consider the physical size constraints associated with the 2916 metric footprint. Evaluate the 900 mA saturation current to ensure it accommodates peak load conditions without performance degradation.
Part Context
This part belongs to the fixed inductor category within Allied Components International's portfolio. It is distinct from surface mount variants like the SMAC series. The VLF designation typically indicates a specific wirewound or ferrite core construction suitable for robust EMI filtering tasks.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 68 mH inductance, 900 mA current rating, and through-hole package dimensions.
