VLF4010AT-100MR64

Fixed Inductors Overview

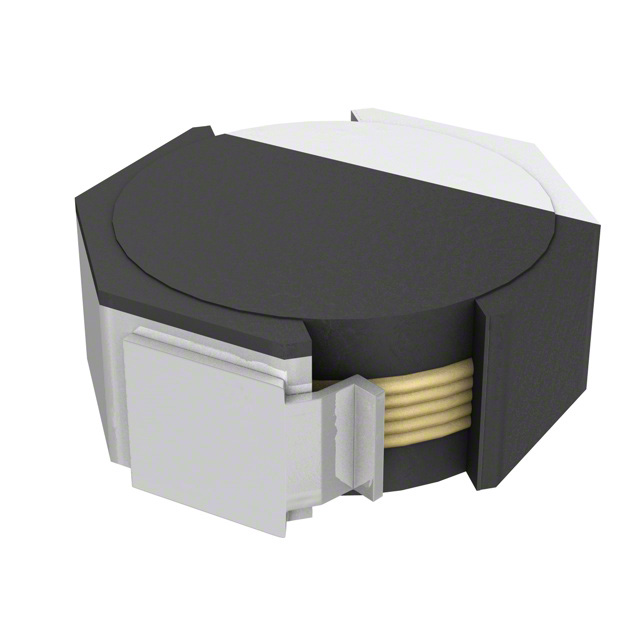

The VLF4010AT-100MR64 is a shielded surface-mount power inductor from TDK's VLF series. It features a ferrite core and wirewound construction, providing an inductance of 10 µH with a tolerance of ±20%. The component supports a maximum DC current of 640 mA and has a maximum DC resistance of 480 mOhms. Designed for operation between -40°C and +105°C, it measures 4.0 mm in length, 1.0 mm in width, and 1.0 mm in height.

Fixed Inductors Feature Summary

• Shielded magnetic structure minimizes electromagnetic interference
• Wirewound ferrite core design ensures stable performance
• Compact surface-mount footprint suitable for space-constrained layouts

Fixed Inductors Applications

• Power supply circuits
• DC-DC converter modules
• General-purpose electronic equipment

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to confirm electrical parameters and packaging type. Check manufacturer documentation for RoHS compliance status and environmental restrictions. Confirm availability as distribution channels may vary. Ensure compatibility with automated pick-and-place processes based on package dimensions.

Fixed Inductors Selection Notes

Select this component when a compact, shielded inductor is required for low-current applications. The 10 µH value suits moderate filtering needs. Verify that the 640 mA current rating meets the circuit's peak load requirements. Consider the 480 mOhm resistance impact on efficiency. Ensure the operating temperature range aligns with the system environment.

Fixed Inductors Part Context

This part belongs to the TDK VLF series of shielded power inductors. The series offers various inductance values and current ratings in standardized SMD packages. The VLF4010AT variant specifically denotes a 4.0x1.0x1.0 mm form factor with high reliability characteristics for industrial and consumer electronics.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official TDK documentation or authorized distributors for cross-reference information.
