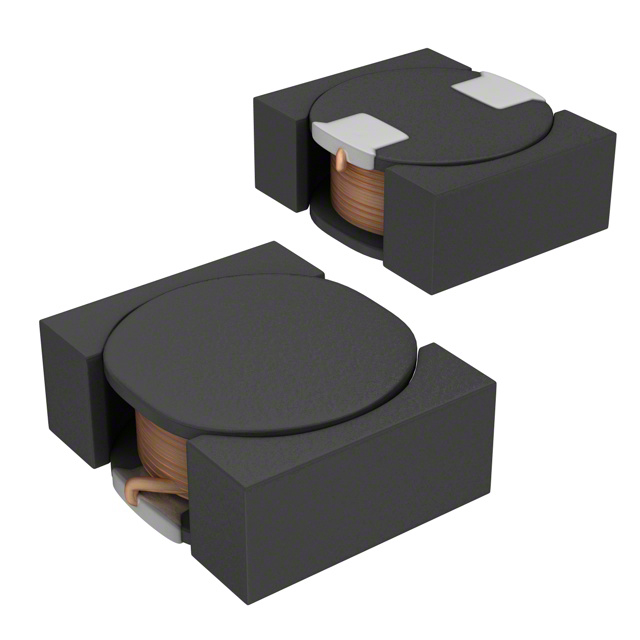

VLF403215MT-220M-CA

$1.34

Description：FIXED IND 22UH 950MA 380MOHM SMD
Series：VLF-M-CA
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8590fede677f Category: Fixed Inductors Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VLF403215MT-220M-CA is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is FIXED IND 22UH 950MA 380MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for VLF403215MT-220M-CA

Description：FIXED IND 22UH 950MA 380MOHM SMD
Series：VLF-M-CA
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：22 µH
Tolerance：±20%
Current Rating (Amps)：950 mA
Current - Saturation (Isat)：650mA
Shielding：Shielded
DC Resistance (DCR)：380mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 105°C
Inductance Frequency - Test：1 MHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Max)：0.059" (1.50mm)
Features：-

Fixed Inductors datasheet and documents for VLF403215MT-220M-CA

VLF403215MT-220M-CA

Fixed Inductors Overview

The VLF403215MT-220M-CA is a fixed surface-mount inductor manufactured by TDK Corporation. It belongs to the VLF series, designed for compact electronic applications requiring reliable magnetic shielding. The component features a metal composite core structure and a shielded design to minimize electromagnetic interference with surrounding circuitry. It utilizes a lead-free solder termination suitable for standard reflow soldering processes.

Fixed Inductors Feature Summary

Shielded metal composite core construction
Surface-mount package format
Lead-free termination compatibility

Fixed Inductors Applications

General purpose power supply circuits
DC-DC converter filtering
Signal processing noise suppression

Fixed Inductors Procurement Notes

This specific part number is officially listed as obsolete and no longer manufactured by TDK Corporation. Procurement of new units from primary sources is not possible. Buyers must verify the authenticity of any available surplus stock through authorized channels. Due to the discontinued status, long-term supply stability cannot be guaranteed, necessitating careful evaluation of existing inventory levels against future production requirements.

Fixed Inductors Selection Notes

Designers should prioritize alternative components due to the obsolete status of this part. The VLS5045EX-220M-## series is identified as a similar available substitute within the manufacturer's portfolio. Selection criteria should focus on matching inductance values, current ratings, and physical footprint dimensions to ensure seamless integration into existing board layouts without requiring significant redesign efforts.

Fixed Inductors Part Context

The VLF series represents TDK's line of shielded fixed inductors utilizing metal composite materials. These components are engineered for high reliability and low electromagnetic interference in space-constrained environments. The VLF403215MT-220M-CA specifically denotes a variant within this family, characterized by its specific dimensional code and tolerance specifications defined by the manufacturer's naming convention.
