VLMY1500-GS08

LED Indication - Discrete Overview

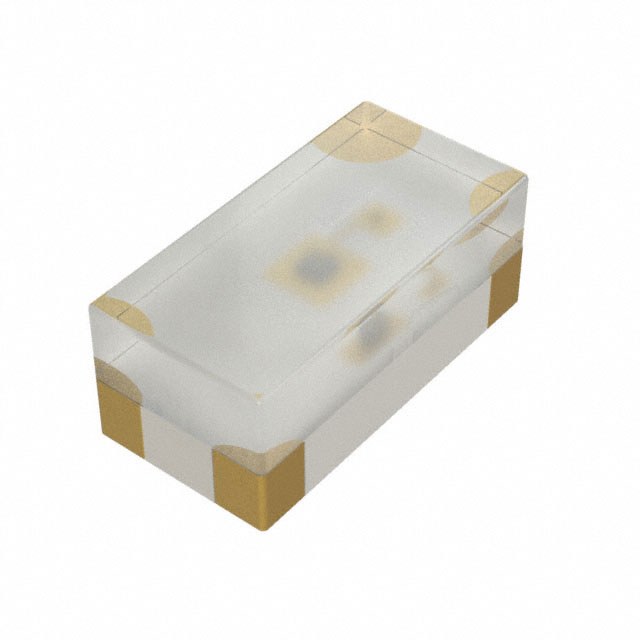

The VLMY1500-GS08 is a single-color surface-mount LED from Vishay, classified as an Ultrabright series component. It features a rectangular lens with non-diffused transparency and emits yellow light at a dominant wavelength of 597 nm. The device operates with a typical forward voltage of 2.4 V and a maximum forward current of 20 mA. Its optical output reaches 180 mcd, while the power rating is limited to 75 mW. Housed in a compact 0402 (1005 metric) package, it utilizes a standard two-pin configuration for SMD/SMT installation.

LED Indication - Discrete Feature Summary

• High-intensity yellow emission within the Ultrabright series classification
• Compact 0402 surface-mount form factor for space-constrained designs
• Non-diffused rectangular lens geometry for directional light projection

LED Indication - Discrete Applications

• General electronic status indicators
• Panel-mounted visual signaling devices
• Consumer electronics front-panel illumination

LED Indication - Discrete Procurement Notes

Verify RoHS compliance status directly against the manufacturer's latest documentation prior to integration. Confirm that the specific GS08 suffix aligns with required packaging formats such as cut tape or reel options. Ensure thermal management strategies account for the 75 mW power dissipation limit during continuous operation cycles.

LED Indication - Discrete Selection Notes

Select this component when a small footprint is critical alongside high luminous intensity requirements. The 180 mcd output provides clear visibility for indicator applications without excessive power consumption. Consider the 2.4 V forward voltage drop for circuit design compatibility with standard logic levels.

LED Indication - Discrete Part Context

This part belongs to Vishay's Ultrabright LED portfolio, designed for applications demanding superior brightness in minimal packages. The 0402 case size represents a standard industry dimension for dense PCB layouts. The product line emphasizes reliability and consistent color performance across manufacturing batches.

LED Indication - Discrete Replacement Considerations

Cross-reference with other Vishay 0402 yellow LEDs such as the VLMY1500 variants. Verify exact dimensional tolerances and spectral characteristics before substituting with components from alternative manufacturers.

LED Indication - Discrete FAQ

What is the viewing angle specification for this LED?

The datasheet specifies a viewing angle of ±65 degrees.

Is this component certified for automotive applications?

The provided specifications do not list AEC-Q101 certification for this specific model.
