VLMY20K1L2-GS08

LED Indication - Discrete Overview

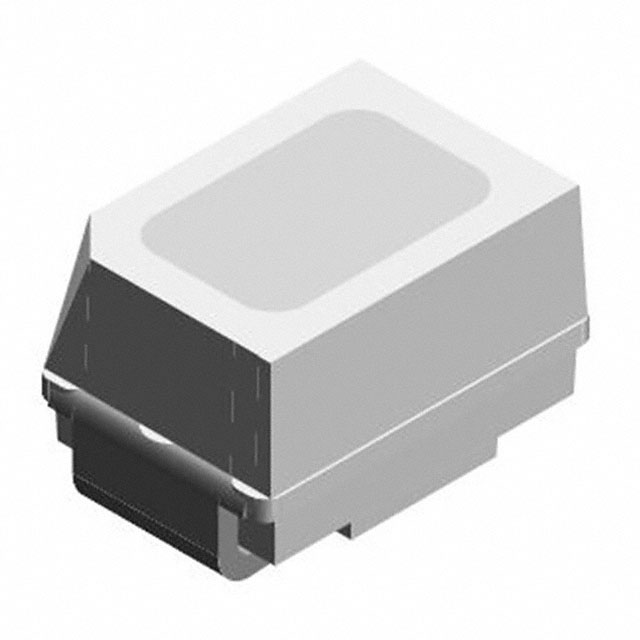

The VLMY20K1L2-GS08 is a single-color yellow LED from Vishay Semiconductor Opto Division, designed for surface-mount applications. It features a non-diffused lens with a rectangular shape and flat top, emitting at a peak wavelength of 594 nm. The component operates with a typical forward voltage of 2.1 V and a test current of 10 mA, producing a light intensity of 10 mcd. It utilizes a 2-SMD J-lead package measuring 3.00 mm in length and 2.80 mm in width, with a maximum height of 1.85 mm.

LED Indication - Discrete Feature Summary

• Features a non-diffused clear lens with a rectangular geometry and flat top design for directional light emission.
• Utilizes a compact 2-SMD J-lead surface mount package suitable for automated assembly processes.
• Provides standard yellow color output with a peak wavelength centered at 594 nm.

LED Indication - Discrete Applications

• Indicator lights for electronic equipment status display
• Panel illumination for control interfaces
• General-purpose visual signaling in consumer devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix GS08 to ensure compliance with RoHS3 directives and REACH regulations as documented by the manufacturer. Confirm that the 2-SMD J-lead package matches the intended PCB footprint requirements. Check for any recent Product Change Notifications regarding material or assembly updates before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a standard yellow indicator with moderate brightness is required for space-constrained designs. The 2.1 V forward voltage drop is compatible with common logic-level driving circuits. Ensure the non-diffused optical characteristic aligns with the desired visibility and beam angle requirements for the target application environment.

LED Indication - Discrete Part Context

This part belongs to the VLM series of surface-mount LEDs manufactured by Vishay Semiconductor Opto Division. The series offers various colors and package styles optimized for high-volume production environments. The VLMY20K1L2-GS08 specifically addresses needs for compact yellow indicators in modern electronics where board space is limited.

LED Indication - Discrete Replacement Considerations

Direct substitutes within the same family include parts with identical electrical characteristics and mechanical dimensions. Verify compatibility by comparing the forward voltage, peak wavelength, and package outline drawings to ensure seamless integration without redesigning the PCB layout.
