VLQ24593BN4N-518B

Antennas RF Overview

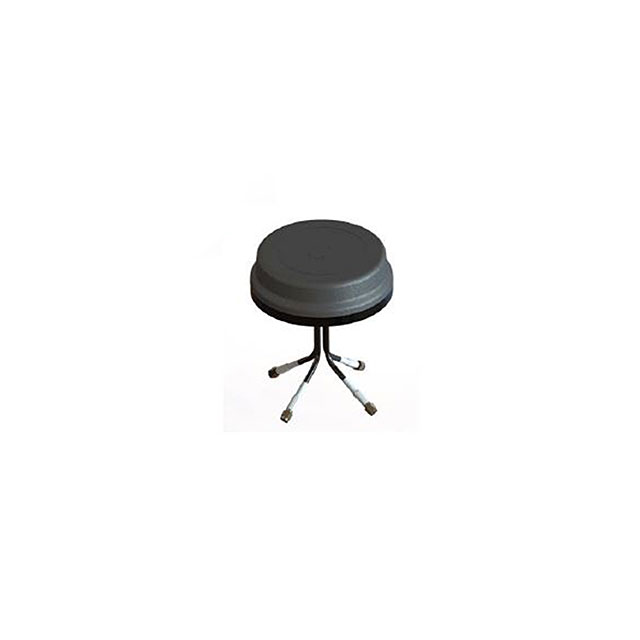

The VLQ24593BN4N-518B is a TE Connectivity RF antenna designed for outdoor MIMO applications. It supports multiple wireless protocols including Wi-Fi, Bluetooth, Zigbee, and WLAN across 2.4 GHz and 5 GHz frequency bands. The unit features an RP-SMA male connector with four ports and utilizes panel mount installation. Key electrical specifications include a gain of 3.5 dBi and a characteristic impedance of 50 Ohms. The physical cable length is 127 mm. The component operates within a temperature range of -35°C to +75°C.

Antennas RF Feature Summary

• Supports multi-band communication for Wi-Fi, Bluetooth, Zigbee, and WLAN standards
• Designed for outdoor MIMO deployment with permanent panel mounting
• Features high-gain radiation characteristics suitable for robust signal transmission

Antennas RF Applications

• Outdoor wireless network infrastructure
• MIMO antenna systems for industrial IoT gateways
• Bluetooth and Zigbee sensor network hubs
• Wi-Fi access point deployments in harsh environments

Antennas RF Procurement Notes

Verify the specific revision suffix against the manufacturer's current datasheet to ensure compatibility with required firmware or hardware interfaces. Confirm that the RP-SMA male connector type matches the receiving equipment ports. Check environmental ratings if the installation site exceeds standard operating temperatures. Ensure the 50 Ohm impedance aligns with the system design requirements to prevent signal reflection issues.

Antennas RF Selection Notes

Select this model when multi-protocol support for 2.4 GHz and 5 GHz bands is required in a single compact unit. The 3.5 dBi gain offers enhanced performance compared to standard internal antennas. Consider the 127 mm cable length for routing flexibility between the mounting location and the radio module. The outdoor-rated construction makes it suitable for exposed installations where weather resistance is critical.

Antennas RF Part Context

This component belongs to TE Connectivity's portfolio of outdoor RF antennas. It is part of a series designed for reliable connectivity in challenging environments. The product integrates multiple wireless technologies into one housing, reducing the need for separate antenna installations. It serves as a key interface for wireless data transmission in modern communication networks.

Antennas RF Replacement Considerations

Consult the official TE Connectivity documentation for direct substitute part numbers. Verify that any replacement maintains the same RP-SMA male connector configuration and 50 Ohm impedance. Ensure the alternative model supports the same frequency bands and protocol standards.
