VLS252010T-100M

Fixed Inductors Overview

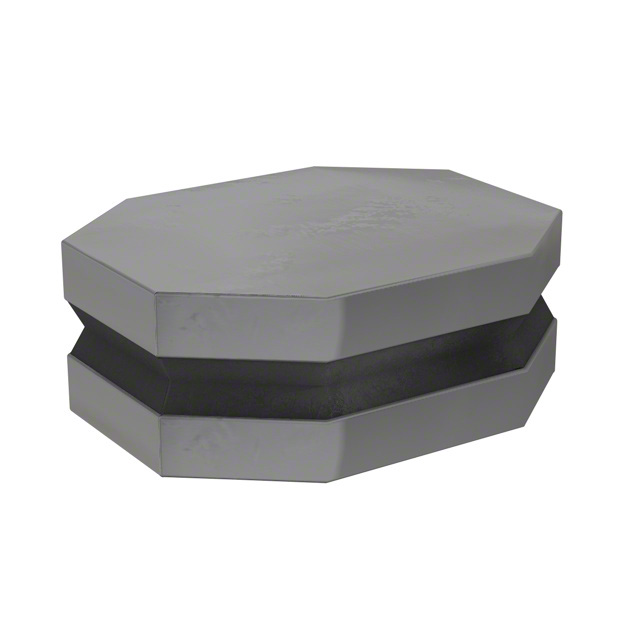

The TDK VLS252010T-100M is a fixed power inductor from the VLS-T series, designed for commercial applications. It features a shielded wirewound construction with a ferrite core and a drum shape. The component has an inductance of 10 µH with a tolerance of ±20%, tested at 1 MHz. It supports a maximum DC current of 660 mA and a saturation current of 440 mA. The DC resistance is 854 mΩ maximum. The package size is 1008 (2520 metric), measuring 2.50mm x 2.00mm x 1.00mm. It operates within a temperature range of -40°C to 105°C.

Fixed Inductors Feature Summary

• Shielded wirewound design for reduced electromagnetic interference
• Low-profile surface mount construction suitable for space-constrained boards
• Ferrite core material optimized for high-frequency performance

Fixed Inductors Applications

• Commercial DC-DC converter circuits
• General-purpose power supply filtering
• Signal conditioning in electronic modules

Fixed Inductors Procurement Notes

Verify component status as this part may be discontinued or not recommended for new designs. Confirm availability through authorized distributors. Check for updated replacement series such as VLS-CX or VLS-HBX if production continuity is required. Ensure RoHS compliance matches project specifications.

Fixed Inductors Selection Notes

Select this inductor when a shielded, low-profile solution is needed for commercial-grade power circuits. Compare saturation and RMS current ratings against circuit load requirements. Consider thermal management due to the small footprint. Verify that the 10 µH value aligns with switching frequency and ripple current targets.

Fixed Inductors Part Context

This component belongs to the VLS-T series of shielded power inductors by TDK. These devices are engineered for general commercial electronics where moderate current handling and EMI suppression are necessary. The series offers various inductance values within the 2520 metric package size.

Fixed Inductors Replacement Considerations

Public confirmed substitutes include VLS252010ET-100M and VLS252010CX-100M-1. Verify electrical parameters and package dimensions before substitution.
