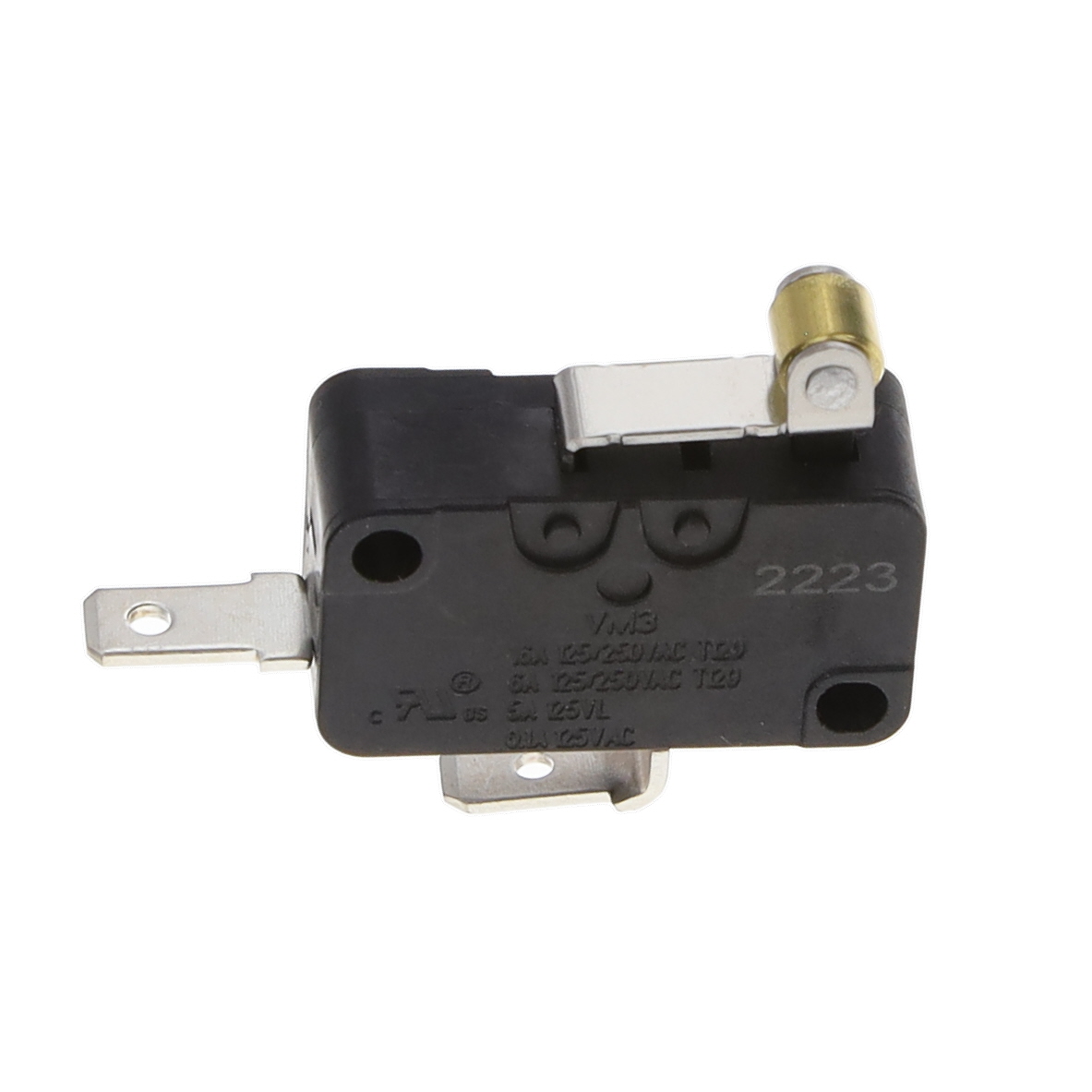

VM3AQF0802L06

VM3AQF0802L06 is listed in the Limit Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH LIMIT SPST-NO 16A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for VM3AQF0802L06

• Description：SWITCH LIMIT SPST-NO 16A 125V
• Series：VM3
• Mfr：CIT Relay and Switch
• Package：Tray
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：16A (AC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：-
• Features：-
• Operating Force：80gf
• Release Force：40gf
• Operating Position：0.785" (19.9mm)
• Pretravel：0.075" (1.9mm)
• Differential Travel：0.016" (0.4mm)
• Overtravel：0.047" (1.20mm)
• Operating Temperature：-40°C ~ 120°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for VM3AQF0802L06
