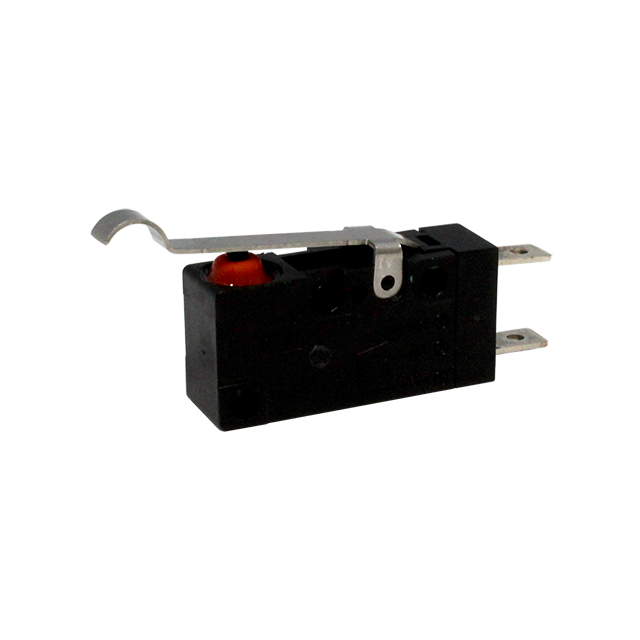

VM3SBGF1802L02 is listed in the Limit Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH LIMIT SPST-NC 10A 125V. Review the specifications below when checking this part for your BOM.
Limit Switches specifications for VM3SBGF1802L02
- Description：SWITCH LIMIT SPST-NC 10A 125V
- Series：VM3S
- Mfr：CIT Relay and Switch
- Package：Tray
- Circuit：SPST-NC
- Switch Function：On-Mom
- Current Rating (Amps)：10A (AC), 6A (DC)
- Voltage Rating - AC：125 V
- Actuator Type：Lever, Simulated Roller
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect - 0.187" (4.7mm)
- Ingress Protection：IP67 - Dust Tight, Waterproof
- Features：-
- Operating Force：120gf
- Release Force：50gf
- Operating Position：0.736" (18.70mm)
- Pretravel：0.118" (3.0mm)
- Differential Travel：0.050" (1.3mm)
- Overtravel：0.039" (1.0mm)
- Operating Temperature：-40°C ~ 120°C
- Voltage Rating - DC：36 V
Limit Switches datasheet and documents for VM3SBGF1802L02
