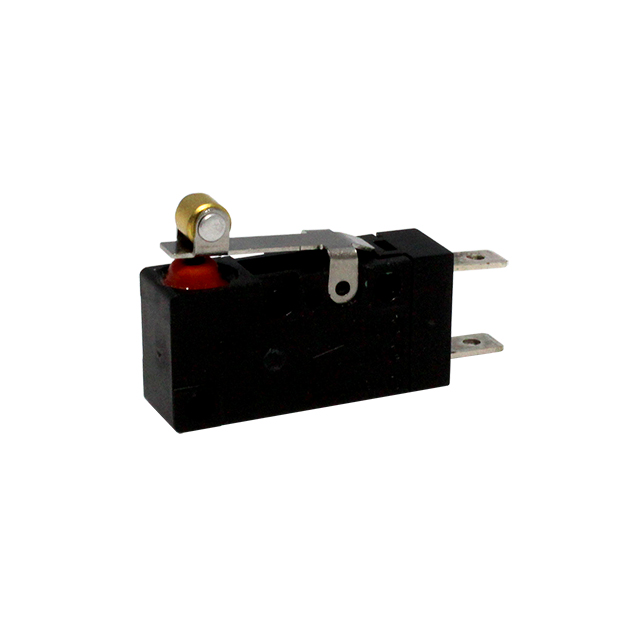

VM3SBGF1802L06

VM3SBGF1802L06 is listed in the Limit Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH LIMIT SPST-NC 10A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for VM3SBGF1802L06

• Description：SWITCH LIMIT SPST-NC 10A 125V
• Series：VM3S
• Mfr：CIT Relay and Switch
• Package：Tray
• Circuit：SPST-NC
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC), 6A (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Force：240gf
• Release Force：100gf
• Operating Position：0.807" (20.50mm)
• Pretravel：0.060" (1.5mm)
• Differential Travel：0.040" (1.0mm)
• Overtravel：0.020" (0.5mm)
• Operating Temperature：-40°C ~ 120°C
• Voltage Rating - DC：36 V

Limit Switches datasheet and documents for VM3SBGF1802L06
