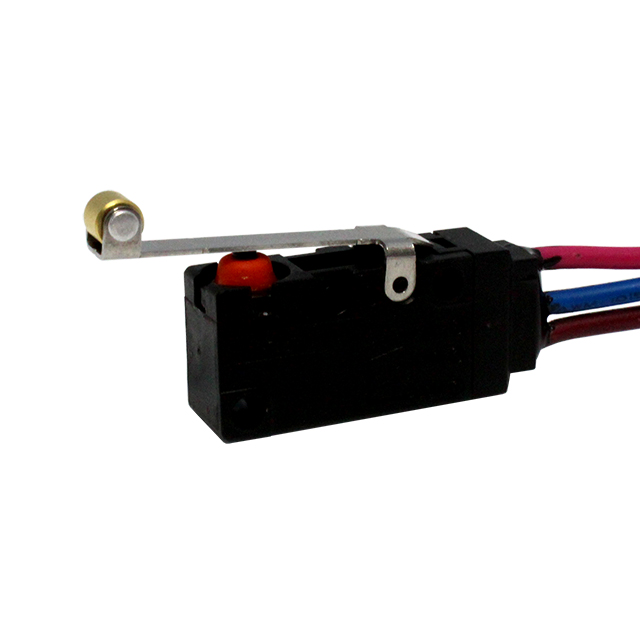

VM3SCQF1803L01 is listed in the Limit Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH LIMIT SPDT 10A 125V. Review the specifications below when checking this part for your BOM.
Limit Switches specifications for VM3SCQF1803L01
- Description：SWITCH LIMIT SPDT 10A 125V
- Series：VM3S
- Mfr：CIT Relay and Switch
- Package：Box
- Circuit：SPDT
- Switch Function：On-Mom
- Current Rating (Amps)：10A (AC), 6A (DC)
- Voltage Rating - AC：125 V
- Actuator Type：Lever, Roller
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Ingress Protection：IP67 - Dust Tight, Waterproof
- Features：-
- Operating Force：140gf
- Release Force：50gf
- Operating Position：0.807" (20.50mm)
- Pretravel：0.100" (2.5mm)
- Differential Travel：0.050" (1.3mm)
- Overtravel：0.039" (1.0mm)
- Operating Temperature：-40°C ~ 120°C
- Voltage Rating - DC：36 V
Limit Switches datasheet and documents for VM3SCQF1803L01
