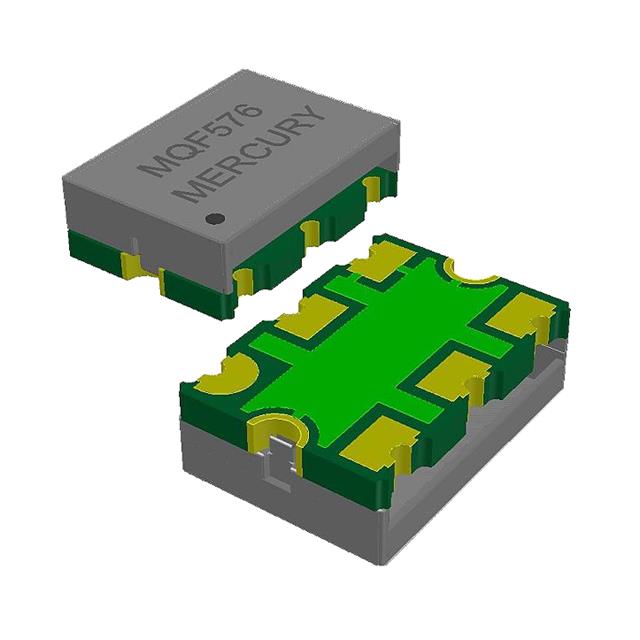

VMQF576D25-64.000-1.0/-40+85

$52.27

Description：XTAL OSC VCTCXO 64.0000MHZ LVDS
Series：QuikXO
Mfr：Mercury Electronics Ind. Co. Ltd
Package：Strip

SKU:799ab2f7a472 Category: Oscillators Brand: Mercury Electronics Ind. Co. Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VMQF576D25-64.000-1.0/-40+85 is listed in the Oscillators range at ChipApex. The manufacturer field lists Mercury Electronics Ind. Co. Ltd. Its product description is XTAL OSC VCTCXO 64.0000MHZ LVDS. Review the specifications below when checking this part for your BOM.

Oscillators specifications for VMQF576D25-64.000-1.0/-40+85

Description：XTAL OSC VCTCXO 64.0000MHZ LVDS
Series：QuikXO
Mfr：Mercury Electronics Ind. Co. Ltd
Package：Strip
Base Resonator：Crystal
Type：VCTCXO
Frequency：64 MHz
Function：Amplitude Control
Output：LVDS
Voltage - Supply：2.5V
Frequency Stability：±1ppm
Absolute Pull Range (APR)：±8ppm
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：23mA (Typ)
Ratings：-
Mounting Type：Surface Mount
Package / Case：6-SMD, No Lead
Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)：0.102" (2.60mm)
Supplier Device Package：-

Oscillators datasheet and documents for VMQF576D25-64.000-1.0/-40+85

VMQF576D25-64.000-1.0/-40+85

Oscillators Overview

The VMQF576D25-64.000-1.0/-40+85 is a Voltage-Controlled Temperature Compensated Crystal Oscillator (VCTCXO) manufactured by Mercury United Electronics, Inc. It operates at a nominal frequency of 64.000 MHz with a frequency stability of ±1.0 ppm across the industrial temperature range of -40°C to +85°C. The device utilizes LVDS output logic and requires a supply voltage of 2.5V. It is housed in a compact 7.0x5.0x2.5mm surface-mount package with six pads.

Oscillators Feature Summary

Integrates voltage control for precise frequency tuning within VCTCXO architecture
Provides stable oscillation performance using temperature compensation technology
Supports high-speed digital interfaces via LVDS output signaling

Oscillators Applications

Telecommunications base stations
High-speed data transmission systems
Network synchronization equipment

Oscillators Procurement Notes

Verify that the specific part number matches the required frequency and tolerance specifications. Confirm the supply voltage requirement aligns with the system design. Ensure the operating temperature range meets the environmental conditions of the intended application. Check for RoHS compliance status if required by regulatory standards.

Oscillators Selection Notes

Select this component when precise frequency control and stability are required over varying temperatures. The LVDS output is suitable for high-speed applications requiring low noise. Consider the physical dimensions and pin configuration for PCB layout compatibility. Evaluate power consumption requirements against the 2.5V supply specification.

Oscillators Part Context

This model belongs to the QuikXO VCTCXO series from Mercury United Electronics. The series offers flexibility in custom frequencies and short delivery times. It is designed for multimedia, Ethernet, and network applications where phase jitter and current consumption are critical factors.
