VO617C-2X001

$0.22

Description：OPTOISOLTR 5.3KV 1CH TRANS 4-DIP
Series：-
Mfr：Vishay Semiconductor Opto Division
Package：Tape & Reel (TR)

SKU:0103e40deaf9 Category: Transistor, Photovoltaic Output Optoisolators Brand: Vishay Semiconductor Opto Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VO617C-2X001 is listed in the Transistor, Photovoltaic Output Optoisolators range at ChipApex. The manufacturer field lists Vishay Semiconductor Opto Division. Its product description is OPTOISOLTR 5.3KV 1CH TRANS 4-DIP. Review the specifications below when checking this part for your BOM.

Transistor, Photovoltaic Output Optoisolators specifications for VO617C-2X001

Description：OPTOISOLTR 5.3KV 1CH TRANS 4-DIP
Series：-
Mfr：Vishay Semiconductor Opto Division
Package：Tape & Reel (TR)
Number of Channels：1
Voltage - Isolation：5300Vrms
Current Transfer Ratio (Min)：63% @ 5mA
Current Transfer Ratio (Max)：125% @ 5mA
Turn On / Turn Off Time (Typ)：6µs, 4µs
Rise / Fall Time (Typ)：3µs, 3µs
Input Type：DC
Output Type：Transistor
Voltage - Output (Max)：80V
Current - Output / Channel：50mA
Voltage - Forward (Vf) (Typ)：1.1V
Current - DC Forward (If) (Max)：60 mA
Vce Saturation (Max)：400mV
Operating Temperature：-55°C ~ 110°C
Mounting Type：Through Hole
Package / Case：4-DIP (0.300", 7.62mm)
Supplier Device Package：4-DIP
Grade：-
Qualification：-

Transistor, Photovoltaic Output Optoisolators datasheet and documents for VO617C-2X001

VO617C-2X001

Transistor, Photovoltaic Output Optoisolators Overview

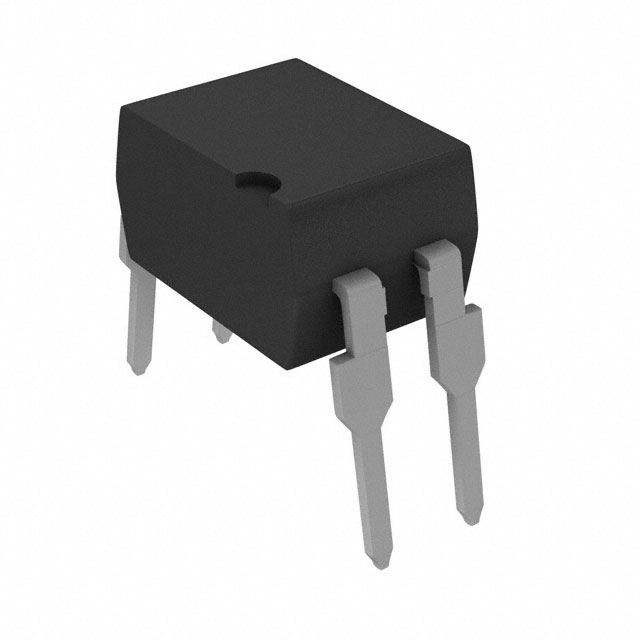

The VO617C-2X001 is a single-channel transistor output optocoupler manufactured by Vishay Semiconductor Opto Division. It features a phototransistor output and a DIP-4 through-hole package. Key electrical parameters include an isolation voltage of 5300 Vrms, a collector-emitter voltage of 80 V, and a maximum collector current of 50 mA. The device operates within a temperature range of -55°C to +110°C. It exhibits a current transfer ratio between 63% and 125% at a forward current of 5 mA, with a typical rise and fall time of 3 µs.

Transistor, Photovoltaic Output Optoisolators Feature Summary

High isolation voltage capability for safety-critical applications
Low coupling capacitance for improved signal integrity
Wide operating temperature range suitable for industrial environments

Transistor, Photovoltaic Output Optoisolators Applications

Industrial control systems requiring galvanic isolation
Power supply feedback loops
Signal isolation in microprocessor interfaces

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix X001 against official Vishay documentation to confirm the exact Current Transfer Ratio (CTR) binning and packaging configuration. Ensure that the DIP-4 through-hole package aligns with the target PCB layout requirements. Cross-reference the manufacturer part number with authorized distributors to confirm availability and authenticity, as distribution status may vary by region.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high isolation voltage and low input current are required. The VO617C-2X001 offers a specific CTR range distinct from other variants like the VO617C-4X001. Consider the 3 µs switching speed for moderate frequency applications. Ensure the 80 V collector-emitter voltage rating meets the load requirements of the isolated circuit.

Transistor, Photovoltaic Output Optoisolators Part Context

This device belongs to the VO617C series, characterized by high current transfer ratios and low coupling capacitance. It is designed for applications demanding robust insulation and reliable performance over a wide temperature range. The series includes various CTR bins and packaging options to suit different design constraints.
